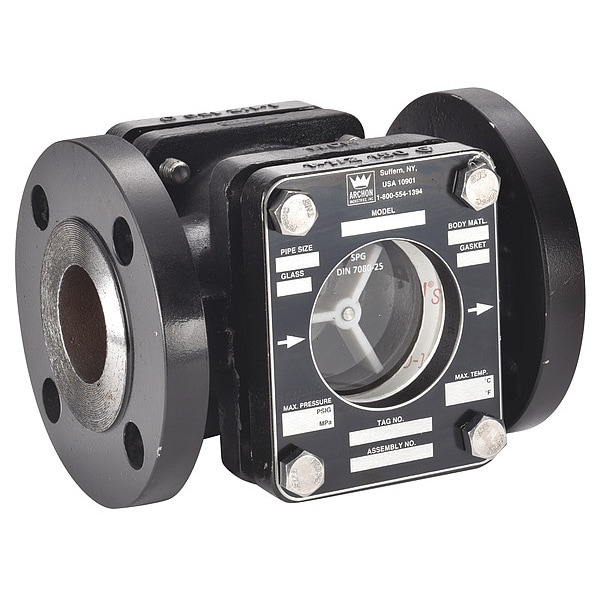

Sight Flow Indicator, 6-1/2"L, 1-1/2" Pipe
Mfr # AKF-FR015AA05A
Zoro # G2384792
product price:Â
$
839.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
1 1/2 in
Connection Type
Flange
Connection Material
Carbon Steel
Sight Material
Borosilicate Glass
Sight Length
2 1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AKF-FR015AA05A
- Zoro #
- G2384792
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Pipe Size
- 1 1/2 in
- Sight Length
- 2 1/4 in
- Overall Length
- 6.5 in
- Sight Diameter
- 2.3 in
- Connection Size
- 1 1/2 in
- Overall Width
- 5.5 in
- Wire Rope Length
- 6.5 in
- Length
- 6.5 in
Details
- Item
- Single Wall Sight Flow Indicator
- Connection Type
- Flange
- Connection Material
- Carbon Steel
- Sight Material
- Borosilicate Glass
- Max. Pressure
- 275 psi
- Bolt Material
- Carbon Steel
- Temp. Range
- -20 Degrees F to 200 Degrees F
- Seal Material
- Neoprene
- Body Material
- Steel
- Number of Windows
- 2
- Indicator Type
- Rotor
- Media Temperature - Minimum
- -20 Degrees F
- Operating Pressure - Maximum
- 275 psi
- Flow Direction
- Horizontal Left
- Media Temperature -Maximum
- 200 Degrees F
- For Media Type
- Fluids
Description
Single Wall Sight Flow Indicator, Indicator Type Rotor, Body Material Steel, Connection Size 1 1/2 in, Connection Type Flange, Operating Pressure - Maximum 275 psi, Sight Material Borosilicate Glass, Sight Diameter 2.3 in, Number of Windows 2, Flow Direction Horizontal Left, Media Temperature - Minimum -20 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Neoprene, For Media Type Fluids, Bolt Material Carbon Steel, Overall Length 6.5 in, Overall Width 5.5 in
