Arlington

Liquid Tight Connector, 1/2in., Silver

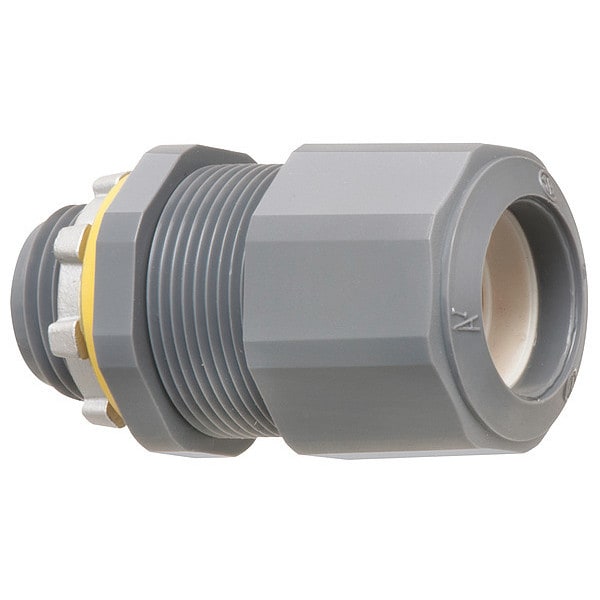

Arlington Liquid Tight Connector, 1/2in., Silver LPCG507Z
Tap to zoom
Hover or click to zoom
$6.83
  • Item: Liquid Tight Cord Connector
  • Item - Cord Connector: Liquid Tight Cord Connector
  • Style - Connector: Straight
See full product details
Orders over $75 ship free.
Total: $6.83

Arlington #LPCG507Z Specifications

  • Item: Liquid Tight Cord Connector
  • Item - Cord Connector: Liquid Tight Cord Connector
  • Style - Connector: Straight
  • Cord Dia. Range: 0.38 in to 0.75 in
  • Material: Zinc Die-Cast
  • Box Connection: 1/2 in MNPT
  • Color: Silver
  • Material - Cord Connector: Die Cast Zinc
  • Material - External Strain Relief: No External Strain Relief
  • Gland Color Code: No Code
  • Standards: CSA LR49636, UL E105706
  • Number of Cords: 1
  • Connector Type: Straight
  • Body Color - Cord Connector: Silver
  • Length - Box to End of Connector: 2.18 in
  • Length - External Strain Relief: No External Strain Relief
  • Conduit Size: 1/2"
  • Length: 2-11/64"
  • Insulated: No
  • Strain Relief Type: No External Strain Relief
  • Hazardous Location Rating: Not Rated
  • Compatible Conduit Trade Size: 1/2 in
  • Sealing Ring Material: Polyethylene
  • Grommet Color Code: No Code
  • Body Material: Zinc
  • Grommet Color Code - Broad: Without Color Coded Grommet
  • Gripper Material: Nylon
  • Thread Gender: Male
  • Collar Material: Zinc
  • Operating Temperature - Combined: 194 Degrees F
  • Overall Length: 2 1/4 in
  • Environmental Rating: Liquid Tight
  • Hazardous Location Rating - Europe: Not Rated
  • Thread Type: NPT Thread
  • Compatible Conduit Type: Liquid Tight Cord Connector
  • Body Color: Silver
  • Grommet Material: Santoprene
  • Maximum Operating Temperature: 194 Degrees F
  • For Maximum Cable OD: 0.6 in
  • Connection Orientation: Straight
  • Liquid Tight: Yes
  • For Minimum Cable OD: 0.39 in
  • Thread Size: 1/2 in
  • Thread-Type: NPT Thread
  • Country of Origin (subject to change): United States

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.38 in to 0.75 in, Box Connection 1/2 in MNPT, Material - Cord Connector Die Cast Zinc, Material - External Strain Relief No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - External Strain Relief No External Strain Relief, Length - Box to End of Connector 2.18 in, Insulated No, Standards CSA LR49636, UL E105706
