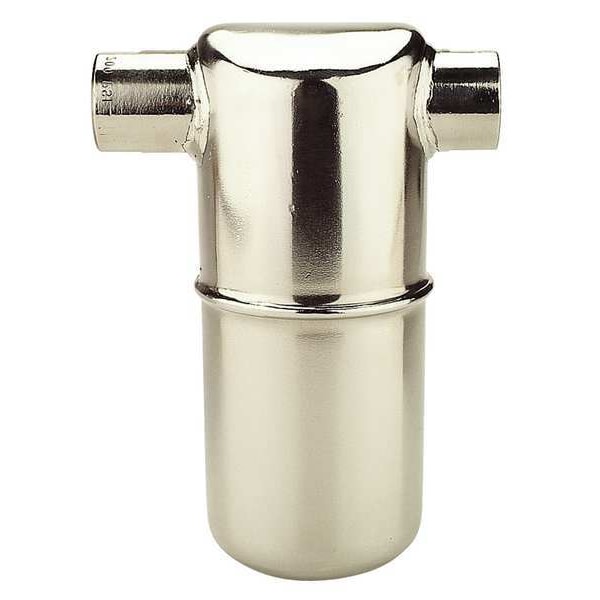

Armstrong International Steam Trap, 600F, 304L Stainless Steel 1822-100-250 - main

Steam Trap, 600F, 304L Stainless Steel

  • Mfr # 1822-100-250

  • Zoro # G4656757

product price:  $1,394.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
1 in
Max. Operating PSI
250 psi
End to End Length
5 in
Condensate Capacity Lbs/Hr
1,500 lb/hr
Max. Temp.
600 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1822-100-250
Zoro #
G4656757
UPC #
-
Country of Origin
United States

Dimensions

End to End Length
5 in
Overall Depth
1 in
Port Connection Size
1 in
Overall Length
7 1/8 in

Details

Item
Steam Trap
(F)NPT Connections
1 in
Max. Operating PSI
250 psi
Condensate Capacity Lbs/Hr
1,500 lb/hr
Max. Temp.
600 Degrees F
Body Material
Stainless Steel
Trap Position
Horizontal
Pipe Configuration
In-line
Type
Inverted Bucket
Application
Steam Heating, Process Equipment, Steam Tracing
Float Material
Stainless Steel
Includes Strainer
Strainer Not Included
Number of Ports
2
Port Types Included
Inlet, Outlet
Operating Pressure - Maximum
250 psi
Condensate Capacity
1,500 lb/hr
Configuration
In-line
Resistance Properties
Freeze Resistant
Port Connection Gender
Female
Allowable Pressure - Maximum
650 psi
Port Connection Type
NPT
Includes Air Vent
Air Vent Included
Operating Temperature - Maximum
600 Degrees F
Steam Trap Type
Inverted Bucket
Installation Orientation
Horizontal
Manufacturer Series
1800
Maximum Capacity at Maximum Pressure Load
1,500 lb/hr at 250 psi
Distance Between Inlet and Outlet Port
5 in

Description

Steam Trap, Allowable Pressure - Maximum 650 psi, Allowable Temperature - Minimum Not Applicable, Application Steam Heating, Process Equipment, Steam Tracing, Body Material Stainless Steel, Condensate Capacity 1,500 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series 1800
