  9. Steam Trap, 25 psi, 353F, 3-1/8 In. L
Shop All Steam Traps
Bell & Gossett

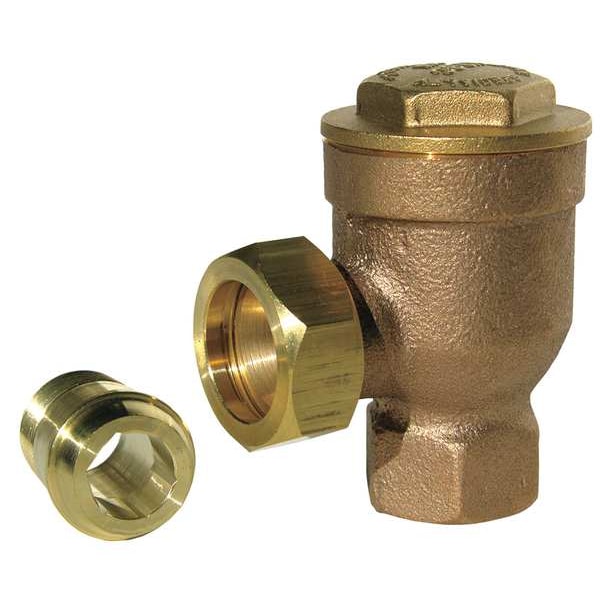

Steam Trap, 25 psi, 353F, 3-1/8 In. L

original price: $213.99
9% off
new price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • (F)NPT Connections 3/4 in
  • Max. Operating PSI 25 psi
  • End to End Length 3 1/8 in
  • Condensate Capacity Lbs/Hr 162 lb/hr
  • Max. Temp. 353 Degrees F
See all product information

Product Information

Dimensions

End to End Length 3 1/8 in
Overall Length 3 1/8 in
Outlet Port Connection Size 3/4 in
Inlet Port Connection Size 3/4 in

Details

Item Steam Trap
(F)NPT Connections 3/4 in
Max. Operating PSI 25 psi
Condensate Capacity Lbs/Hr 162 lb/hr
Max. Temp. 353 Degrees F
Body Material Brass
NPT Inlet 3/4 in
Pressure Air Vent Self-Adjusting
Type Thermostatic
Downstream PSI Range 0 to 25 psi
Application Convectors, Steam Kettles, Evaporators, Heating Coils, Radiators, Sterilizers, Steam Tracing, Unit Heaters
NPT Outlet 3/4 in
Pipe Configuration Angle
NPT Port 3/4 in
Outlet Port Connection Type NPT
Self-Draining Self-Draining
Seat Pressure 125 psi
Outlet Port Connection Gender Male
Includes Air Vent Air Vent Included
Distance Between Inlet and Outlet Port 3 1/8 in
Operating Temperature - Maximum 353 Degrees F
Valve Action Normally Open
Number of Ports 2
Operating Pressure - Maximum 25 psi
Manufacturer Series 17C
Installation Orientation Horizontal
Resistance Properties Corrosion Resistant, Moderate Water Hammer Resistant
Condensate Capacity 162 lb/hr
Inlet Port Connection Type NPT
Configuration Angle
Steam Trap Type Thermostatic
Inlet Port Connection Gender Female

Description

Steam Trap, Application Convectors, Steam Kettles, Evaporators, Heating Coils, Radiators, Sterilizers, Steam Tracing, Unit Heaters, Body Material Brass, Condensate Capacity 162 lb/hr, Configuration Angle, Distance Between Inlet and Outlet Port 3 1/8 in, Includes Air Vent Air Vent Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal, Manufacturer Series 17C, Number of Ports 2
