  9. Hot Water Circulator Pump, 1/32, 115, NPT Connection

This item is Discontinued.

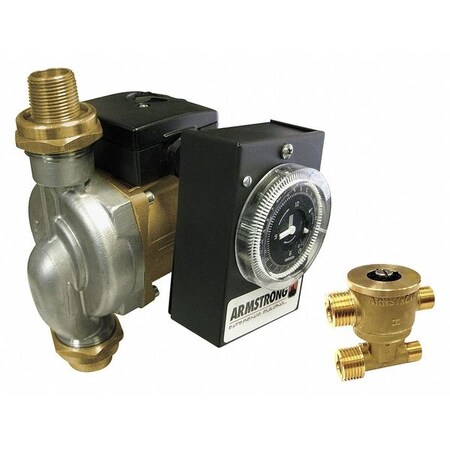

Armstrong Pumps Hot Water Circulator Pump, 1/32, 115, NPT Connection ASTRO EXPRESS 2 SYSTEM

Hot Water Circulator Pump, 1/32, 115, NPT Connection (Discontinued)

  • Mfr # ASTRO EXPRESS 2 SYSTEM
  • Zoro # G8509767
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ASTRO EXPRESS 2 SYSTEM
Zoro #
G8509767
UPC #
672807403782
Country of Origin
United States

Dimensions

Inlet/Outlet Size
1-1/4"
Length
5"
Manufacturers Warranty Length
2 yr.
Face to Face Dimension
6"
Height
6"
Width
7"

Details

HP
1/32
Housing Material
Stainless steel
Connection Style
NPT
Max. GPM @ Head
9.5 gpm @ 0 ft.
Min. GPM @ Head
0 gpm @ 6 ft.
Drive Type
Direct
Features
3 Speed, Maintenance Free, Compact, High Performance
RPM
3600
Includes
Circulator Pump, Astro Express LF Valve, Unions, and (2) Gaskets
Standards
ETL
Amps
0.29
Series
ASTRO EXPRESS 2
Max. Operating Pressure
150 psi
Pump Mount
In Line
Max. Temp.
230 Degrees F
Pump Type
Wet Rotor, Maintenance Free
Item
Hot Water Circulator Pump
Best Efficiency GPM @ Head
4 gpm @ 3 ft.
Thermal Protection
yes
Voltage
115
Impeller Material
30% Glass-Filled Noryl(R)
Compliance
cETL, Low Lead, NSF-372
Mechanical Seal
Wet Rotor
Phase
1
Loop Configuration
Open
Shut-Off
6 ft.
Flange/Union Included
Yes
Shaft Material
Ceramic
Number of Speeds
3

Description

Hot Water Circulator Pump, Face to Face Dimension 6 in, Number of Speeds 3, Phase 1, Pump Type Wet Rotor, Maintenance Free, Series ASTRO EXPRESS 2, Amps 0.29
