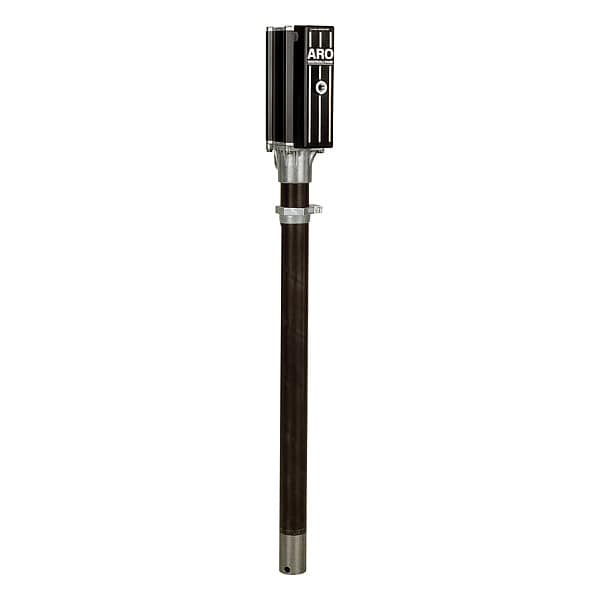

Air Drum Pump, 2 lb/min, 450 psi, 3:1

  • Mfr # LM2203A-31-C

  • Zoro # G4287377

product price:
$
744.99
/ea
Free Shipping & Returns

Key Features

Max. Viscosity
8,750 cps
Power Source
Air
Wetted Materials
Buna-N, Carbon Steel, Copper, Hard Stainless Steel, PTFE, Zinc/Aluminum Alloy
Pump Ratio
3:1
Outlet Pressure Max. (PSI)
450 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LM2203A-31-C
Zoro #
G4287377
UPC #
-
Country of Origin
India

Dimensions

Hose Length
72 in
For Container Size
16 gal
Air Inlet Connection Size
1/4"
Hose Outside Diameter
15/16 in
Hose Inside Diameter
1/2 in

Details

Item
Drum Pump
Max. Viscosity
8,750 cps
Power Source
Air
Wetted Materials
Buna-N, Carbon Steel, Copper, Hard Stainless Steel, PTFE, Zinc/Aluminum Alloy
Pump Ratio
3:1
Outlet Pressure Max. (PSI)
450 psi
Max. Fluid Temp.
180 Degrees F
Max. Air Inlet PSI
150 psi
Metered
Yes
Includes
2 in Bung Adapter
Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Includes Discharge Hose
No
Discharge Tube Outlet OD
3/8 in
For Container Type
Drum
Hose Cover Material
Neoprene
Suction Tube OD
1 in
Pump Connection ID
13/16 in
Includes Bung Adapter
Yes
Diesel Exhaust Fluid Compatible
No
Includes Nozzle
No
Pump Connection OD
1 1/2 in
Discharge Connection Type
FNPT
Motor Enclosure
Air
Hose Tube Material
Buna-N
Air Consumption
9 cfm
Min. Air Pressure
0 psi
Noise Level
85 dB
Pump Connection Type
FNPT
Wetted Material
Aluminum Alloy/Buna-N/Carbon Steel/Copper/PTFE/Stainless Steel/Zinc
Maximum Flow Rate
2 lb/min
Maximum Viscosity
8,750 cps
Minimum Air Pressure
0 psi
Housing Material
Steel
Maximum Outlet Pressure
450 psi
Pressure Ratio
3:1
Maximum Fluid Temperature
180 Degrees F
Maximum Air Pressure
150 psi
Type
Air-Operated
Chemical Compatibility
Gear Oil, Motor Oil, Standard and Industrial Greases, Transmission Fluid
Power Source - old
Air

Description

Oil Pump, Max. Air Pressure 150 psi, Discharge Connection Type FNPT, Features Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment, Air Consumption 9 cfm, Hose Length 6 ft, Includes Discharge Hose No, Motor Enclosure Air, Noise Level 85 dB, Max. Viscosity 8,750 cps, Includes Bung Adapter Yes, Includes Nozzle No
