Shop ARO

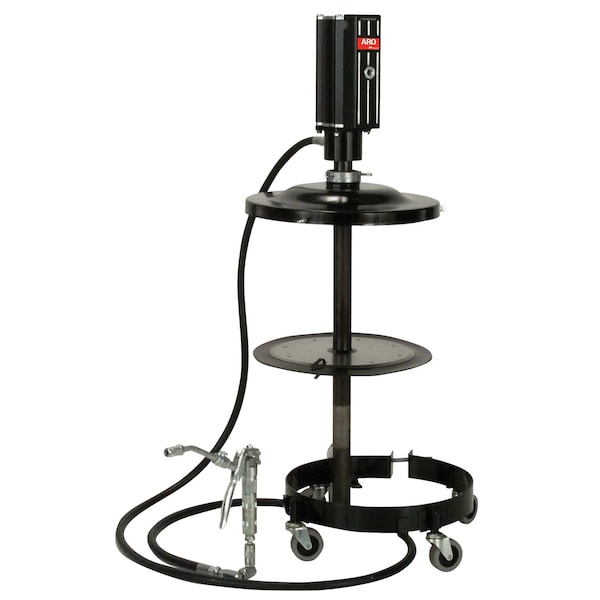

Air Drum Pump, 4 lb/min, 7,500 psi, 50:1

  • Mfr # LP3004-1

  • Zoro # G4571026

product price:  $1,671.99
/ea
Free Shipping & Returns

Key Features

Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Max. Viscosity
250,000 cps
Includes
2 in Bung Adapter
Wetted Materials
Carbon Steel, Copper, Hard Stainless Steel, Buna-N, PTFE, Zinc/Aluminum Alloy
Max. Fluid Temp.
180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP3004-1
Zoro #
G4571026
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Hose Length
120 in
For Container Size
16 gal
Hose Outside Dia.
11/16 in
Air Inlet Size
1/4 in
Air Inlet Connection Size
1/4 in
Hose Inside Diameter
1/4 in
Hose Outside Diameter
11/16 in

Details

Item
Air Drum Pump
Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Max. Viscosity
250,000 cps
Includes
2 in Bung Adapter
Wetted Materials
Carbon Steel, Copper, Hard Stainless Steel, Buna-N, PTFE, Zinc/Aluminum Alloy
Max. Fluid Temp.
180 Degrees F
Motor Enclosure
Air
Housing Material - Pumps
Carbon Steel
Suction Tube OD
3/4 in
Noise Level
85 dB
Discharge Tube Outlet OD
3/8 in
Includes Nozzle
Yes
Power Source
Air
Air Consumption
25 cfm
Min. Air Pressure
0 psi
Pump Connection ID
1 1/4 in
Discharge Tube Outlet ID
1/4 in
Pump Connection Type
Immersed
Max. Outlet Pressure
7,500 psi
Ratio
50:1
Includes Discharge Hose
Yes
Diesel Exhaust Fluid Compatible
No
Hose Tube Material
Neoprene
Hose Cover Material
Neoprene
For Media Type
Gear Oil, Motor Oil, Standard and Industrial Greases, Transmission Fluid
Max. Flow Rate
4 lb/min
Cart Type Included
Dolly
Adapter Connection Type
MNPT
Pump Connection OD
1 1/2 in
For Container Type
Drum
Metered
No
Discharge Connection Type
FNPT
Max. Air Pressure
150 psi
Nozzle Operation
Manual
Maximum Air Pressure
150 psi
Minimum Air Pressure
0 psi
Maximum Fluid Temperature
180 Degrees F
Adapter Connection Standard
MNPT
Maximum Viscosity
250,000 cps
Maximum Flow Rate
4 lb/min
Includes Bung Adapter
Yes
Pressure Ratio
50:1
Maximum Outlet Pressure
7,500 psi
Housing Material
Steel
Meter Type Included
No Meter Included
Wetted Material
Aluminum Alloy/Buna-N/Carbon Steel/Copper/PTFE/Stainless Steel/Zinc

Description

Grease Pump, Max. Air Pressure 150 psi, Discharge Connection Type FNPT, Features Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment, Air Consumption 25 cfm, Hose Length 10 ft, Includes Discharge Hose Yes, Motor Enclosure Air, Noise Level 85 dB, Max. Viscosity 250,000 cps, Adapter Connection Type MNPT, Includes Nozzle Yes
