  11. Compressed Air Regulator, 2000 Series, Aluminum, 1/2 in NPT, 210 cfm, 0 psi to 140 psi, Knob
Shop All Pneumatic Regulators
Aro

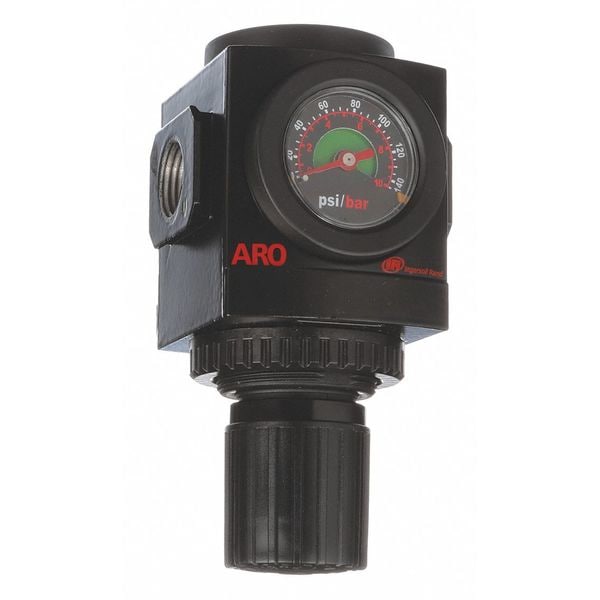

Compressed Air Regulator, 2000 Series, Aluminum, 1/2 in NPT, 210 cfm, 0 psi to 140 psi, Knob

product price: $70.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Regulators 1/2 in
  • Max. Inlet Pressure - Regulators 250 psi
  • Adjustment Range - Regulators 0 to 140 psi
  • Max. Temp. - Regulators 140 Degrees F
  • Overall Height - Regulators 5.5 in
See all product information

Product Information

Dimensions

Pipe Size - Regulators 1/2 in
Overall Height - Regulators 5.5 in
Overall Length 3.13 in
Pipe Size (Regulators) 1/2"
Overall Width - Regulators 2.75 in
Overall Width (Regulators) 2.75"
Overall Height (Regulators) 5.50"
Pressure Gauge Port Size 1/2 in
Overall Depth 3 1/8 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in
Overall Width 2 3/4 in
Overall Height 5 9/16 in
Width 2.7"
Length 3.1"
Height 5.5"

Details

Item Compressed Air Regulator
Max. Inlet Pressure - Regulators 250 psi
Adjustment Range - Regulators 0 to 140 psi
Max. Temp. - Regulators 140 Degrees F
Max. Inlet Pressure (Regulators) 250 psi
Max. Temp. (Regulators) 140 Degrees F
Valve Design Balanced
Body Material Aluminum
Adjustment Range (Regulators) 0 to 140 psi
Gauge Port 1/2 in NPT
Max. Flow - Regulators 210 cfm
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Max. Flow (Regulators) 210 cfm
Adjustment Knob Standard
Includes Gauge Component, Panel Nut
Series 2000
Maximum Operating Pressure 250 psi
Air Inlet Gender Female
Maximum Regulated Pressure 140 psi
For Substance Type Air
Adjustment Mechanism Knob
Regulator Type Relieving
Modular Connection Modular Connection
Air Outlet Gender Female
Air Inlet Type NPT
Pressure Gauge Included Yes
Maximum Operating Temperature 140 Degrees F
Adjustment Mechanism Material Acetal
Pressure Gauge Port Type NPT
Air Outlet Type NPT
System Location Air Line
Maximum Flow Rate 210 cfm
Minimum Regulated Pressure 0 psi
Standards ATEX Directive 94/9/EEC or 2014/34/EU, IRITS-1215-197
Minimum Operating Temperature 23 Degrees F
For Fluid Type Air
Duty Rating Heavy Duty
Type Aluminum
Max. Pressure 250 psi

Description

Compressed Air Regulator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 210 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 140 Degrees F, Pressure Gauge Included Yes, Adjustment Mechanism Knob, Overall Width 2 3/4 in, System Location Air Line, Series 2000, Adjustment Mechanism Material Acetal, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Duty Rating Heavy Duty, For Fluid Type Air
