Aro

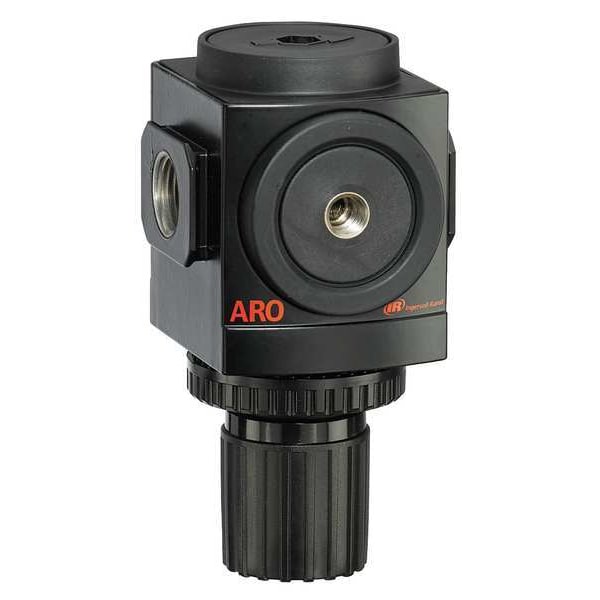

Air Regulator, 1/2 In NPT, 215 cfm, 250 psi

product price: $67.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Regulators 1/2 in
  • Max. Inlet Pressure - Regulators 250 psi
  • Adjustment Range - Regulators 0 to 140 psi
  • Max. Temp. - Regulators 140 Degrees F
  • Overall Height - Regulators 5.41 in
See all product information

Product Information

Dimensions

Pipe Size - Regulators 1/2 in
Overall Height - Regulators 5.41 in
Overall Length 2.75 in
Pipe Size (Regulators) 1/2"
Overall Width (Regulators) 3.14"
Overall Width - Regulators 3.14 in
Overall Height (Regulators) 5.41"
Overall Height 5 1/2 in
Overall Width 3 1/8 in
Air Inlet Size 1/2 in
Pressure Gauge Port Size 1/8 in
Overall Depth 3 1/8 in
Air Outlet Size 1/2 in
Height 5.47"
Length 2.76"

Details

Item Compressed Air Regulator
Max. Inlet Pressure - Regulators 250 psi
Adjustment Range - Regulators 0 to 140 psi
Max. Temp. - Regulators 140 Degrees F
Max. Flow (Regulators) 215 cfm
Max. Flow - Regulators 215 cfm
Body Material Aluminum
Valve Design Balanced
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Series 2000
Gauge Port 1/8 in NPT
Adjustment Range (Regulators) 0 to 140 psi
Max. Inlet Pressure (Regulators) 250 psi
Includes Panel Nut
Adjustment Knob Standard
Max. Temp. (Regulators) 140 Degrees F
Pressure Gauge Port Type NPT
Maximum Operating Pressure 250 psi
Air Outlet Type NPT
Adjustment Mechanism Material Acetal
Minimum Operating Temperature 23 Degrees F
Air Outlet Gender Female
System Location Air Line
Sight Gauge Included No
Adjustment Mechanism Knob
Modular Connection Modular Connection
Duty Rating Heavy Duty
For Fluid Type Air
Pressure Gauge Included No
Maximum Operating Temperature 140 Degrees F
Maximum Regulated Pressure 140 psi
Regulator Type Relieving
Air Inlet Type NPT
For Substance Type Air
Standards ATEX Directive 94/9/EEC or 2014/34/EU, IRITS-1215-197
Air Inlet Gender Female
Minimum Regulated Pressure 0 psi
Maximum Flow Rate 210 cfm
Type Aluminum

Description

Compressed Air Regulator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 210 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 140 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 3 1/8 in, System Location Air Line, Series 2000, Adjustment Mechanism Material Acetal, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Duty Rating Heavy Duty, For Fluid Type Air
