Shop ARO

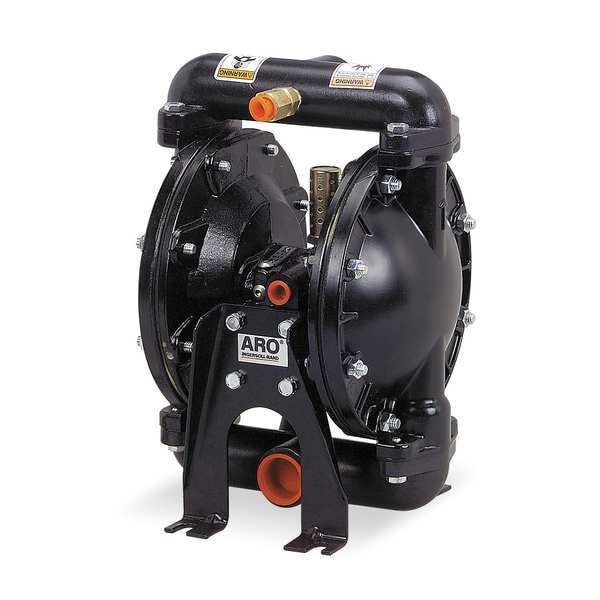

Double Diaphragm Pump, Aluminum, Air Operated, Viton, 29 GPM

  • Mfr # 650717-C

  • Zoro # G0267592

product price:  $1,556.10
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Acetal
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
650717-C
Zoro #
G0267592
UPC #
-
Country of Origin
China

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
9 in
Overall Width
9.5 in
Overall Length
14 in
Solid Diameter (Maximum)
0.12 in
Media Discharge Connection Size
1 in
Media Intake Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Acetal
Valve Type
Ball
Air Consumption (Maximum)
29 scfm
Air Intake Connection Type
NPT
Check Seat Material
PVDF
Diaphragm Material
Viton®
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
0 Degrees F
Operating Pressure (Maximum)
50 psi
Standards
UL 79, ATEX (CE Ex11 2GD X)
Agency Compliance
ATEX, CE, REACH, RoHS, UL79
Self-Priming Wet
12 ft
Pump Operation Type
Air
Inlet/Outlet
1 in
Priming
Self-Priming
Chemical Compatibility
Diesel, Gasoline, Kerosene, Oil
Media Intake Location
Bottom
Feet of Head (Maximum)
115 ft
Viscosity (Maximum)
40,000 cps
Nameplate Voltage
N
Flow Rate (Maximum)
29 gpm
Manifold Connection Type
NPT
Flow Rate @ 50 psi
33.8 gpm
Air Intake Pressure (Maximum)
50 psi
For Use With Potable Systems
No
Series Family
Specialty
Media Discharge Connection Type
NPT
Media Intake Connection Type
NPT
Media Discharge Location
Top
Flow Rate @ 40 psi
30 gpm
Wetted Housing Material
Aluminum
Manifold Port Connection Type
Single Port
Media Discharge Port Configuration
Center Horizontal
Diaphragm Reinforcement
Fabric Reinforced
Manifold Connection Standard
NPT
Wetted Body Material
Aluminum
Mounting Hardware Material
Steel
Series
Pro
Media Intake Port Configuration
Center Horizontal
Diaphragm Base Material
FKM
Material Conductivity
Conductive
Center Section Material
Aluminum
Displacement Per Stroke
0.08 gal
Fluid Chamber Assembly Type
Bolted
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 29 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material PVDF, Diaphragm Material Viton, Feet of Head (Maximum) 120 ft, Flow Rate (Maximum) 33.8 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type FNPT, Media Intake Location Center
