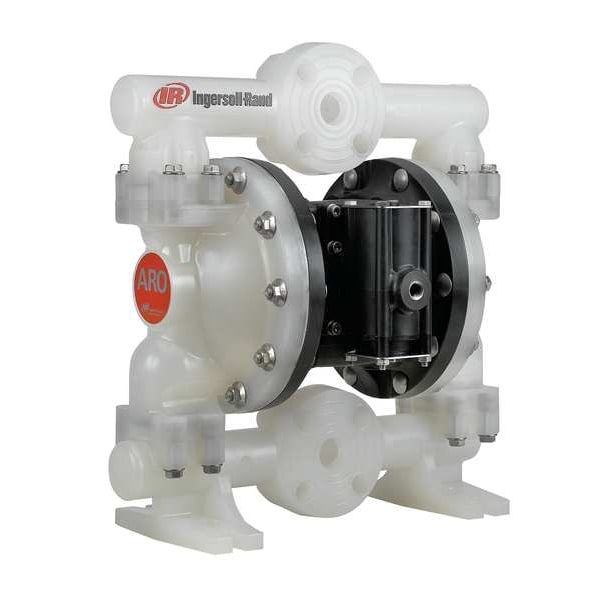

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 53 GPM

  • Mfr # PD10P-YPS-PTT

  • Zoro # G3341782

product price:  $1,834.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PD10P-YPS-PTT
Zoro #
G3341782
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
14.8 in
Overall Width
14.2 in
Overall Length
14.2 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in
Solid Diameter (Maximum)
0.13 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
PTFE
Media Temperature (Maximum)
175 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Agency Compliance
CE, REACH, RoHS
Self-Priming Dry
19 ft
Inlet/Outlet
1 in
Nameplate Voltage
N
Flow Rate @ 40 psi
22 gpm
Flow Rate @ 70 psi
41 gpm
Flow Rate (Maximum)
53 gpm
Manifold Connection Type
Flange
Flow Rate @ 80 psi
45.75 gpm
Wetted Housing Material
Polypropylene
Flow Rate @ 100 psi
50.5 gpm
Mounting Hardware Material
Stainless Steel
Media Discharge Connection Type
Flange
Media Discharge Location
Top
Media Intake Location
Bottom
Media Intake Connection Type
Flange
Flow Rate @ 90 psi
48.6 gpm
Flow Rate @ 50 psi
31.5 gpm
Series
EXP
Chemical Compatibility
Viscosity (Maximum)
40,000 cps
Series Family
EXP
Flow Rate @ 120 psi
51.5 gpm
Feet of Head (Maximum)
265 ft
Priming
Self-Priming
Flow Rate @ 60 psi
37.2 gpm
For Use With Potable Systems
No
Air Intake Pressure (Maximum)
120 psi
NPSHr
38 ft of head
Diaphragm Base Material
PTFE
Diaphragm Reinforcement
Not Reinforced
Material Conductivity
Non-Conductive
Media Discharge Port Configuration
Center Horizontal
Includes Solenoid
No Solenoid Included
Media Intake Port Configuration
Center Horizontal
Fluid Chamber Assembly Type
Bolted
Wetted Body Material
Polypropylene
Center Section Material
Polypropylene
Manifold Port Connection Type
Single Port
Manifold Connection Standard
Flange
Displacement Per Stroke
0.113 gal

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 51.5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type Flange, Media Intake Location Center
