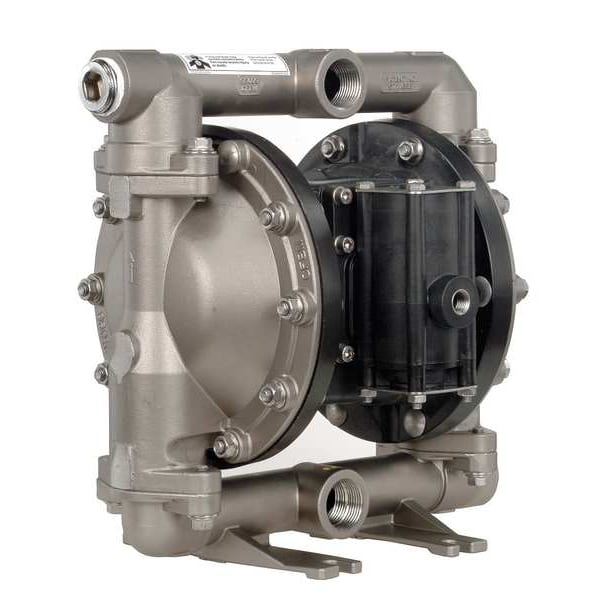

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

  • Mfr # PD10R-ASS-AAA

  • Zoro # G3109811

product price:  $2,871.75
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PD10R-ASS-AAA
Zoro #
G3109811
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Width
12.3 in
Overall Length
12.3 in
Overall Height
12.4 in
Media Discharge Connection Size
1 in
Solid Diameter (Maximum)
0.13 in
Media Intake Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
Santoprene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
120 psi
Self-Priming Dry
19 ft
Agency Compliance
CE, REACH, RoHS
Pump Operation Type
Air
Inlet/Outlet
1 in
Media Intake Connection Type
NPT
Nameplate Voltage
N
Series
EXP
Flow Rate (Maximum)
52 gpm
Mounting Hardware Material
Stainless Steel
Flow Rate @ 100 psi
48 gpm
Manifold Connection Type
NPT
Flow Rate @ 120 psi
54.5 gpm
Air Intake Pressure (Maximum)
120 psi
Flow Rate @ 50 psi
35.8 gpm
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Media Discharge Connection Type
NPT
Wetted Housing Material
316 Stainless Steel
For Use With Potable Systems
No
Feet of Head (Maximum)
265 ft
Priming
Self-Priming
Flow Rate @ 80 psi
45.25 gpm
Flow Rate @ 40 psi
29 gpm
Flow Rate @ 70 psi
42.5 gpm
Media Intake Location
Bottom
Viscosity (Maximum)
40,000 cps
Flow Rate @ 60 psi
39.8 gpm
Media Discharge Location
Top
Flow Rate @ 90 psi
46.9 gpm
Series Family
EXP
NPSHr
38 ft of head
Media Intake Port Configuration
Center Horizontal, Side
Displacement Per Stroke
0.116 gal
Wetted Body Material
316 Stainless Steel
Includes Solenoid
No Solenoid Included
Material Conductivity
Non-Conductive
Center Section Material
Polypropylene
Diaphragm Reinforcement
Fabric Reinforced
Manifold Connection Standard
NPT
Diaphragm Base Material
Santoprene
Media Discharge Port Configuration
Center Horizontal, Side
Fluid Chamber Assembly Type
Bolted
Manifold Port Connection Type
Multiport

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) 265 ft, Flow Rate (Maximum) 52 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom
