Aro

Filter/Regulator, 10.03 In. H, 2.76 In. W

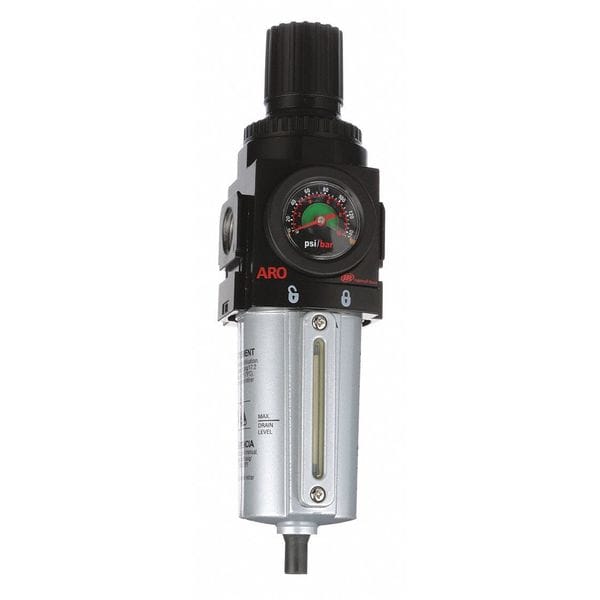

Aro Filter/Regulator, 10.03 In. H, 2.76 In. W P39344-610
Hover or click to zoom Tap to zoom
$103.81
  • Item - Filter-Regulators: Filter-Regulator
  • Connection Size - Air Treatment: 1/2 in NPT
  • Filter Rating - Air Treatment: 5 micron
See full product details
This item ships free.

Total: $103.81

Aro #P39344-610 Specifications

  • Item - Filter-Regulators: Filter-Regulator
  • Connection Size - Air Treatment: 1/2 in NPT
  • Filter Rating - Air Treatment: 5 micron
  • Max. Incoming Pressure - Air Treatment: 250 psi
  • Max. Flow - Air Treatment: 173 cfm
  • Adjustment Range - Air Treatment: 0 to 140 psi
  • Bowl Material - Air Treatment: Metal with Sight Glass
  • Size - Air Treatment: Subcompact
  • Bowl Size - Air Treatment: 2.4 oz
  • For Removal Of: Oil, Particles, Water
  • Gauge Port Size: 1/8 in
  • Bowl Size: 2.4 oz.
  • Pipe Size: 1/2" NPT
  • Adjustment Range: 0 to 140 psi
  • Max. Flow: 173 cfm
  • Drain Type: Manual
  • Item: Filter-Regulator
  • Bowl Material: Metal with Sight Glass
  • Filter Rating: 5 micron
  • Includes: Gauge, Panel Nut
  • Adjustment Knob: Standard
  • Overall Height: 10.03 in
  • Max. Temp.: 175 Degrees F
  • Overall Width: 2.76 in
  • Max. Pressure: 250 psi
  • Filter Type: Coalescing
  • Overall Depth: 3 3/16 in
  • Air Inlet Size: 1/2 in
  • Sight Gauge Included: Yes
  • Pressure Drop: 33 psi
  • Air Inlet Type: NPT
  • Air Outlet Type: NPT
  • Inlet Size (Combined): 1/2 in NPT
  • Pressure Control Range (Combined): 0 psi to 140 psi
  • Regulator Type: Relieving
  • Air Outlet Size: 1/2 in
  • For Substance Type: Oil, Particles, Water
  • Filter Bowl Capacity: 2.4 oz
  • Differential Pressure Indicator Included: Yes
  • Maximum Flow Rate: 172 cfm
  • Number of Air Inlets: 1
  • Maximum Operating Pressure: 250 psi
  • Maximum Operating Temperature: 175 Degrees F
  • Series: 2000
  • Filter Bowl Material: Metal
  • Filter Element Material: Polyethylene
  • Drain Part Compatibility: 104322
  • Number of Air Outlets: 1
  • Pressure Gauge Port Size: 1/8 in
  • Modular Connection: Modular Connection
  • For Fluid Type: Oil, Particles, Water
  • Maximum Regulated Pressure: 140 psi
  • Body Material: Aluminum
  • Minimum Regulated Pressure: 0 psi
  • Drain Included: Yes
  • System Location: Air Line
  • Pressure Gauge Included: Yes
  • Adjustment Mechanism: Knob
  • Minimum Operating Temperature: 23 Degrees F
  • Pressure Gauge Port Type: NPT
  • Country of Origin (subject to change): Korea, Republic of

Description

Filter-Regulator, Filter Bowl Material Metal, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 172 cfm, Filter Rating 5 micron, Filter Type Coalescing, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 2 3/4 in, Series 2000, Adjustment Mechanism Knob, Air Outlet Size 1/2 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes, Drain Part Compatibility 104322
