Reelcraft

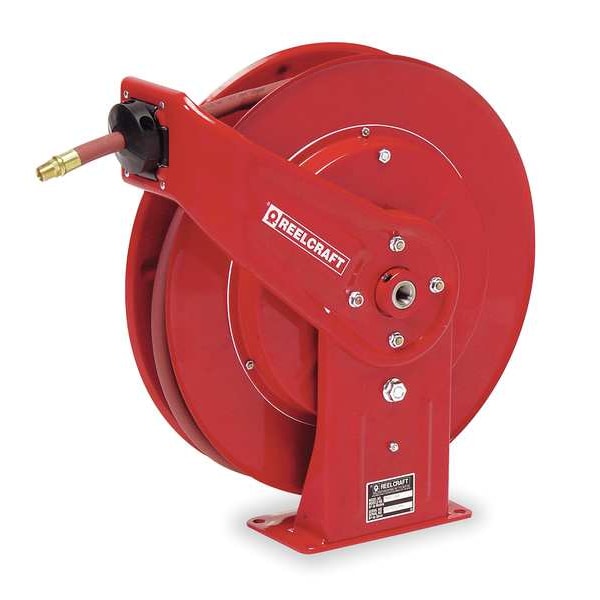

Spring Return Hose Reel, 1/2 in Hose Dia., 50 ft Length, 300 psi

Reelcraft Spring Return Hose Reel,  1/2 in Hose Dia.,  50 ft Length,  300 psi 7850 OLP
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$391.01
  • Duty Rating: Heavy Duty
  • Finish - Hose Reels: Powder Coated
  • Hose Included: Yes
See full product details
This item ships free.
Total: $391.01

Reelcraft #7850 OLP Specifications

  • Duty Rating: Heavy Duty
  • Finish - Hose Reels: Powder Coated
  • Hose Included: Yes
  • Hose Inside Dia.: 1/2 in
  • Hose Length: 50 ft
  • Housing Material: Steel
  • Max. Pressure: 300 psi
  • Media - Hose Reels: Air, Water
  • Mounting: Bench and Truck, Ceiling, Floor, Wall
  • Overall Length: 19 3/4 in
  • Overall Width: 7 in
  • Application: Industrial, Automotive Service Centers, Transmission Shops, Fleet Maintenance Facilities, Pneumatic Tools, Aircraft Maintenance, Tire Stores, Agriculture, Service Trucks, Wash Down
  • Item: Spring Return Hose Reel
  • Drive Type - Hose Reels: Spring Return
  • Hose Material: PVC
  • Swivel Material: Nickel Plated Steel
  • Overall Height: 20 1/4 in
  • Includes: Hose; Bumper
  • Max. Temp.: 150 Degrees F
  • Reel Inlet: 1/2 in (F)NPT
  • Enclosed Reel: No
  • Hose Outlet: 3/8 in (M)NPT
  • Hose Ends: 3/8 in (M)NPT
  • Seal Type: Nitrile
  • Bearings: Permanently Lubricated
  • Drive Type: Spring Return
  • Hose Outside Dia.: 3/4 in
  • Reel Width: 7 in
  • Features: Heavy Duty
  • Weight: 47 lb
  • Swivel Outlet Thread Size: 1/2 in - 14
  • Number of Mount Holes: 4
  • Corrosion-Resistant: Yes
  • Mount Hole Diameter: 1/2 in
  • Fitting Size: 3/8 in x 3/8 in
  • Enclosed: No
  • Fitting Type: NPT x NPT
  • Hose Fitting A Size: 3/8 in
  • Hose Fitting A Type: NPT
  • Mount Base Width: 4 61/64 in
  • Swivel Outlet Type: NPT
  • Latch Type: Spring Loaded
  • Number of Guide Arms: Single Arm
  • Hose Color: Red
  • Spiral Hose Guard: No
  • Hose Reel Type: Ceiling, Floor, Vehicle, Wall Mount Hose Reel
  • Base Motion Type: Stationary
  • Fasteners Included: No
  • Swivel Inlet Thread Size: 1/2 in - 14
  • Reel Color: Red
  • Maximum Operating Temperature: 150 Degrees F
  • Hose Tube Material: PVC
  • Hose Fitting B Gender: Male
  • Overall Dimensions: 19 3/4 in L x 7 in W x 20 1/4 in H
  • Maximum Operating Pressure: 300 psi
  • Swivel Inlet Type: NPT
  • Swivel Outlet Size: 1/2 in
  • Mounting Hole Center to Center Height: 7 13/16 in
  • Speed Limited Retraction: No
  • Bearing Construction: Permanently Lubricated
  • Hose Fitting A Material: Brass
  • For Dual Hose: No
  • Reel Material: Carbon Steel
  • Hose Capacity: 50 ft (1/2 in I.D.)
  • Mount Base Height: 8 61/64 in
  • Includes Hose Stop: Yes
  • Minimum Operating Temperature: 32 Degrees F
  • Hose Fitting A Gender: Male
  • Includes Leader Hose: No
  • Swivel Inlet Gender: Female
  • Swivel Outlet Gender: Male
  • Reel Finish: Powder Coated
  • Swivel Inlet Size: 1/2 in
  • Twin Hose Compatible: No
  • Hose End Configuration: 3/8 in MNPT
  • Reel Diameter: 9 in
  • Mounting Hole Center to Center Width: 3 7/8 in
  • Hose Fitting B Type: NPT
  • Hose Fitting B Size: 3/8 in
  • Hose Reel Primary Application: Air, Water
  • Hose Cover Material: PVC
  • Pedestal Type: Single Pedestal
  • Includes Hose: Yes
  • Hose Fitting B Material: Brass
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (1/2 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/2 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 20 1/4 in, Overall Length 19 3/4 in, Overall Width 7 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
