Shop ARO

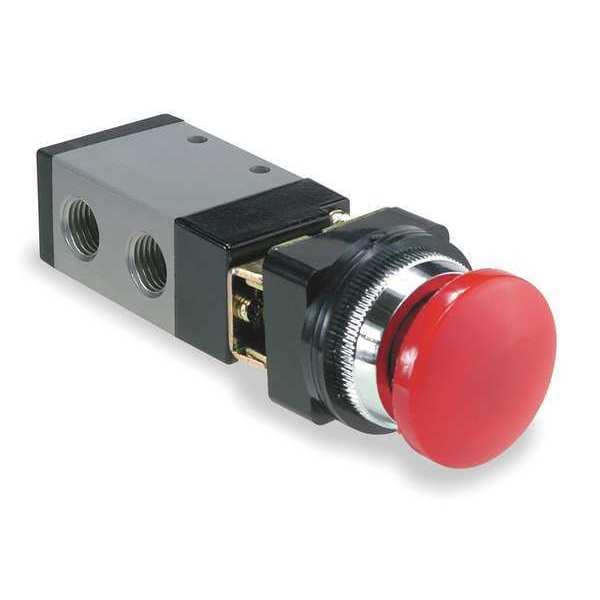

Manual Air Control Valve, 3-Way, 1/4in NPT

  • Mfr # M252HS-10

  • Zoro # G1650022

product price:
$
95.69
/ea

Key Features

Actuator/Return
Button/Spring
Coefficient of Volume
0.7
Series
MaxAir
Number of Ways
Three-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M252HS-10
Zoro #
G1650022
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Manual Air Control Valve
Actuator/Return
Button/Spring
Coefficient of Volume
0.7
Series
MaxAir
Number of Ways
Three-Way
Number of Positions
Two-Position
Connection
NPT
Valve Temp. Range
32 Degrees to 160 Degrees F
Valve Ways and Positions
3-Way/2-Position
Max. CFM - Valves
26 cfm
CFM
26
Air Valve Type
3-Way, 2-Position
Valve Max. Pressure Rating
150 psi
Valve Actuator / Return
Button / Spring
Temp. Range
32 Degrees to 160 Degrees F
Normally Open / Normally Closed
Normally Closed
Max. Pressure
150 psi
Body Material
Aluminum
Number of Ports
3
Actuator Type
Button
Operating Pressure - Maximum
150 psi
Valve Type
Spool
Actuator Color
Red
Return Action
Spring Return
Force @ 50 psi
8.5 lb
Operating Temperature - Maximum
160 Degrees F
Valve Action
Normally Open/Normally Closed
For Media
Compressed Air
Exhaust Port Connection Gender
Female
Fail Position
Open/Closed
Operating Temperature - Minimum
32 Degrees F
Product Type
Manual Air Control Valve
Coefficient of Volume (Cv)
0.7
Body Style
Panel-Mounted
Flow Rate - Maximum
26 scfm
Vacuum Rating
Not Vacuum Operable
Valve Port Connection Type
NPT
Valve Port Connection Gender
Female
Actuation Force @ 125 psi
8.5 lb
Exhaust Port Connection Type
Threaded
Operating Pressure - Minimum
0 psi

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Button / Spring, Max. CFM - Valves 26 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 160 Degrees F, Center Position Not Applicable, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.7, Body Material Aluminum, Overall Length 1 9/16 in, Overall Height 4 7/8 in, Overall Width 1 9/16 in, Series MaxAir
