Aro

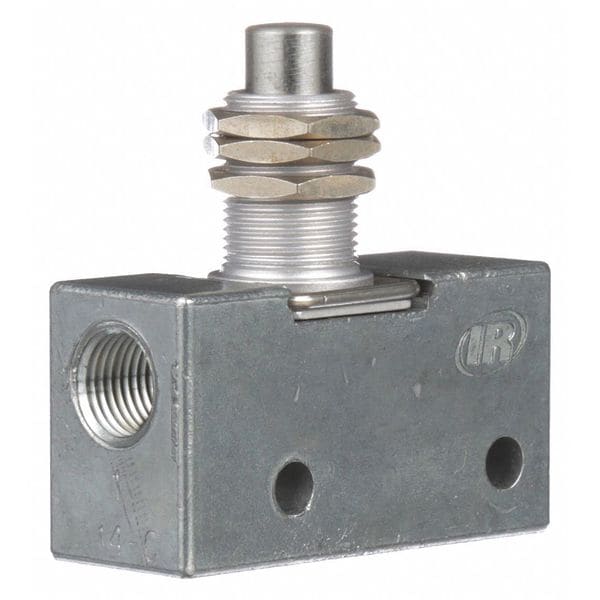

Manual Air Control Valve, 3-Way, 1/8in NPT

Aro Manual Air Control Valve, 3-Way, 1/8in NPT 214-C
Hover or click to zoom Tap to zoom
$48.03
  • Item: Manual Air Control Valve
  • Valve Ways and Positions: 3-Way/2-Position
  • Pipe Size: 1/8"
See full product details
Orders over $75 ship free.
Total: $48.03

Aro #214-C Specifications

  • Item: Manual Air Control Valve
  • Valve Ways and Positions: 3-Way/2-Position
  • Pipe Size: 1/8"
  • Valve Port Size: 1/8 in
  • Max. Pressure: 150 psi
  • Connection: NPT
  • Valve Actuator / Return: Plunger / Spring
  • Max. CFM - Valves: 7.5
  • Valve Max. Pressure Rating: 150 psi
  • Valve Temp. Range: 32 Degrees to 160 Degrees F
  • CFM: 7.5
  • Actuator/Return: Plunger/Spring
  • Overall Height: 2 in
  • Normally Open / Normally Closed: Normally Closed
  • Air Valve Type: 3-Way, 2-Position
  • Temp. Range: 32 Degrees to 160 Degrees F
  • Overall Length: 1 3/4 in
  • Overall Width: 11/16 in
  • Coefficient of Volume: 0.2
  • Country of Origin (subject to change): United States

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Plunger / Spring, Max. CFM - Valves 7.5, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 160 Degrees F, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.2, Overall Length 1 3/4 in, Overall Height 2 in, Overall Width 11/16 in, Manual Air Control Valve
