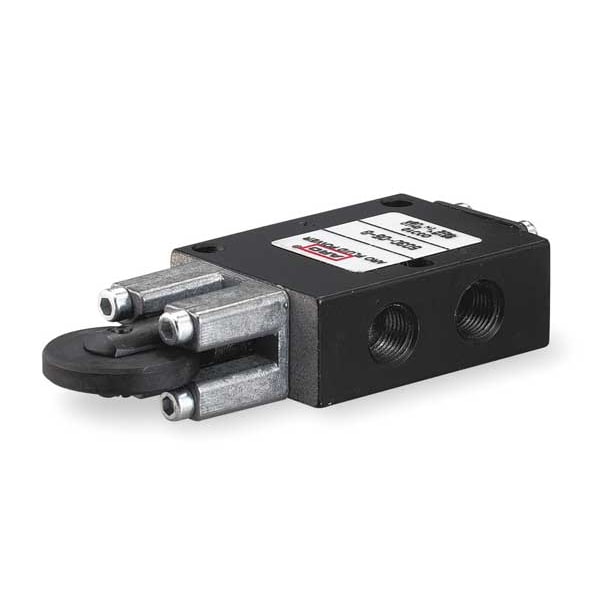

Manual Air Control Valve, 3-Way, 1/8in NPT

  • Mfr # 5030-05

  • Zoro # G1992977

product price:
$
145.64
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Roller Cam/Spring
Coefficient of Volume
0.4
Series
50
Number of Ways
Three-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5030-05
Zoro #
G1992977
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Roller Cam/Spring
Coefficient of Volume
0.4
Series
50
Number of Ways
Three-Way
Number of Positions
Two-Position
Valve Actuator / Return
Roller Cam / Spring
Air Valve Type
3-Way, 2-Position
Max. CFM - Valves
7.5 cfm
CFM
7.5
Valve Max. Pressure Rating
150 psi
Normally Open / Normally Closed
Normally Closed
Max. Pressure
150 psi
Valve Temp. Range
-10 Degrees to 180 Degrees F
Connection
NPT
Valve Ways and Positions
3-Way/2-Position
Temp. Range
-10 Degrees to 180 Degrees F
Body Material
Aluminum
Seal Material
Buna-N
Actuation Force @ 125 psi
12 lb
Body Style
Side-Ported
Operating Pressure - Maximum
150 psi
Return Action
Spring Return
Valve Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees F
Coefficient of Volume (Cv)
0.43
Number of Ports
3
Operating Pressure - Minimum
20 psi
Lubrication
Lubrication Required
Actuator Type
Roller
Force @ 50 psi
12 lb
Flow Rate - Maximum
16 scfm
Actuator Color
Black
For Media
Air
Spool Material
Steel
Product Type
Manual Air Control Valve
Operating Temperature - Maximum
180 Degrees F
Valve Action
Normally Closed
Valve Type
Spool
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
Threaded
Vacuum Rating
Not Vacuum Operable
Fail Position
Open/Closed
Valve Port Connection Type
NPT

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Roller Cam / Spring, Max. CFM - Valves 7.5 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Not Applicable, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.4, Body Material Aluminum, Overall Length 3 3/4 in, Overall Height 3/4 in, Overall Width 1 1/2 in, Series 50
