Shop All Manual Air Control Valves
Aro

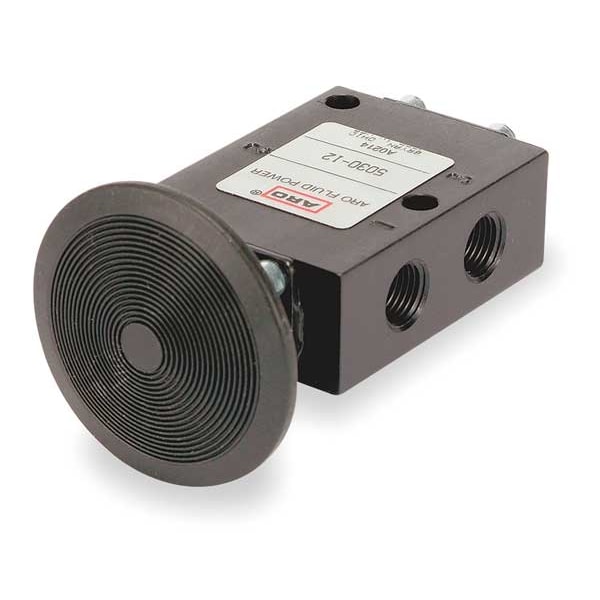

Manual Air Control Valve, 3-Way, 1/8in NPT

original price: $140.57
7% off
new price: $129.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 3-Way/2-Position
  • Pipe Size 1/8"
  • Max. Pressure 150 psi
  • Valve Port Size 1/8 in
  • Connection NPT
See all product information

Product Information

Dimensions

Pipe Size 1/8"
Valve Port Size 1/8 in
Overall Width 1 3/4 in
Overall Height 1 3/4 in
Overall Length 3 11/32 in

Details

Item Manual Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Max. Pressure 150 psi
Connection NPT
Valve Actuator / Return Button / Manual
Max. CFM - Valves 16 cfm
Valve Max. Pressure Rating 150 psi
Valve Temp. Range -10 Degrees to 180 Degrees F
Normally Open / Normally Closed Normally Closed
Temp. Range -10 Degrees to 180 Degrees F
Series 50
CFM 16
Actuator/Return Button/Manual
Air Valve Type 3-Way, 2-Position
Coefficient of Volume 0.4

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Button / Manual, Max. CFM - Valves 16 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.4, Overall Length 3 11/32 in, Overall Height 1 3/4 in, Overall Width 1 3/4 in, Series 50, Manual Air Control Valve
