Shop ARO

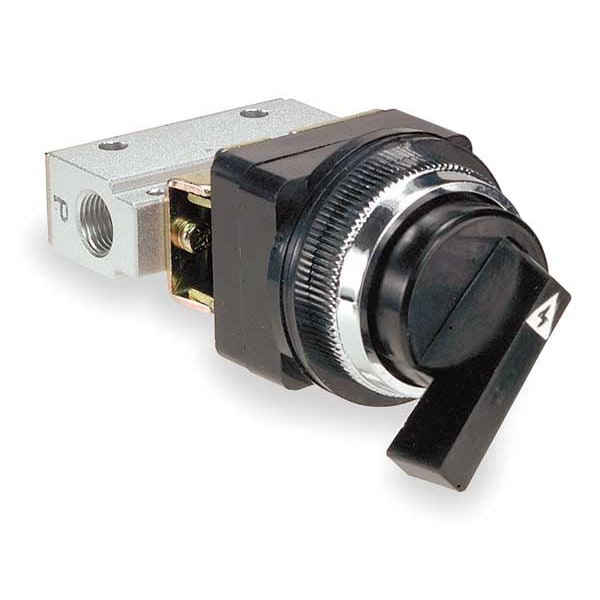

Manual Air Control Valve, 3-Way, 1/8in NPT

  • Mfr # M291LS-11

  • Zoro # G2357731

product price:
$
65.29
/ea

Key Features

Actuator/Return
Long Knob Selector/Manual
Coefficient of Volume
0.2
Number of Ways
Three-Way
Series
MaxAir
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M291LS-11
Zoro #
G2357731
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
3 1/2 in
Overall Length
1 3/4 in
Overall Width
1 9/16 in
Pipe Size
1/8"
Valve Port Size
1/8 in
Valve Port Connection Size
1/8 in
Wire Rope Length
1 3/4 in
Length
1 3/4 in

Details

Item
Manual Air Control Valve
Actuator/Return
Long Knob Selector/Manual
Coefficient of Volume
0.2
Number of Ways
Three-Way
Series
MaxAir
Number of Positions
Two-Position
Valve Actuator / Return
Long Knob Selector / Manual
Connection
NPT
Air Valve Type
3-Way, 2-Position
Normally Open / Normally Closed
Normally Closed
Valve Max. Pressure Rating
150 psi
Valve Ways and Positions
3-Way/2-Position
Max. CFM - Valves
8 cfm
CFM
8
Valve Temp. Range
32 Degrees to 160 Degrees F
Max. Pressure
150 psi
Body Material
Aluminum
Temp. Range
32 Degrees to 160 Degrees F
Operating Temperature - Minimum
32 Degrees F
Number of Ports
2
Operating Temperature - Maximum
160 Degrees F
Product Type
Manual Air Control Valve
Valve Port Connection Gender
Female
For Media
Compressed Air
Valve Type
Spool
Operating Pressure - Maximum
150 psi
Exhaust Port Connection Type
Unthreaded
Actuator Type
Knob
Coefficient of Volume (Cv)
0.2
Valve Action
Normally Closed
Flow Rate - Maximum
8 scfm
Operating Pressure - Minimum
0 psi
Valve Port Connection Type
NPT
Fail Position
Closed
Return Action
Manual Return
Body Style
Panel-Mounted
Actuator Color
Black
Vacuum Rating
Not Vacuum Operable

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Long Knob Selector / Manual, Max. CFM - Valves 8 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 160 Degrees F, Center Position Not Applicable, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 1 3/4 in, Overall Height 3 1/2 in, Overall Width 1 9/16 in, Series MaxAir
