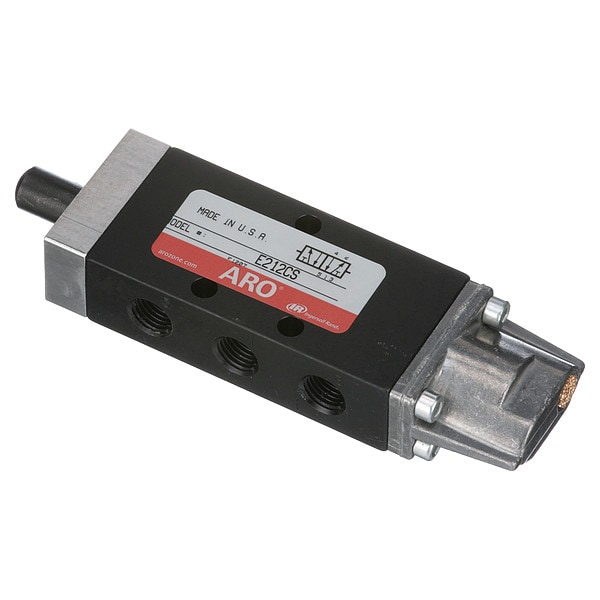

Aro Manual Air Control Valve, Cam Stem, Alum E212CS - main

Manual Air Control Valve, Cam Stem, Alum

  • Mfr # E212CS

  • Zoro # G4140298

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Body Material
Aluminum
Overall Length
6 3/16 in
Overall Height
1 in
Overall Width
3 1/2 in
Max. CFM - Valves
26 scfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E212CS
Zoro #
G4140298
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6 3/16 in
Overall Height
1 in
Overall Width
3 1/2 in
Valve Port Size
1/4 in
Exhaust Port Connection Size
1/4 in
Valve Port Connection Size
1/4 in

Details

Item
Manual Air Control Valve
Body Material
Aluminum
Max. CFM - Valves
26 scfm
Valve Max. Pressure Rating
150 psi
Valve Temp. Range
-10 Degrees to 180 Degrees F
Seal Material
Buna-N
Series
E
Valve Actuator / Return
Cam Stem / Spring
Valve Type
Spool
Connection
NPT
Number of Ports
5
Body Style
Panel-Mounted
Valve Ways and Positions
4-Way/2-Position
Vacuum Rating
Not Vacuum Operable
Valve Port Connection Type
NPT
Actuator Type
Cam Stem
Flow Rate - Maximum
26 scfm
Exhaust Port Connection Type
Threaded
Operating Pressure - Maximum
150 psi
Actuator Color
Black
Number of Ways
Four-Way
Lubrication
Lubrication Required
Fail Position
Open
Number of Positions
Two-Position
Operating Temperature - Maximum
180 Degrees F
Coefficient of Volume (Cv)
0.7
Return Action
Spring Return
Product Type
Manual Air Control Valve
Valve Action
Normally Open
Operating Pressure - Minimum
20 psi
Operating Temperature - Minimum
-10 Degrees F
Valve Port Connection Gender
Female
Exhaust Port Connection Gender
Female
For Media
Air

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Cam Stem / Spring, Max. CFM - Valves 26 scfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Not Applicable, Body Material Aluminum, Overall Length 6 3/16 in, Overall Height 1 in, Overall Width 3 1/2 in, Series E
