Shop GAST

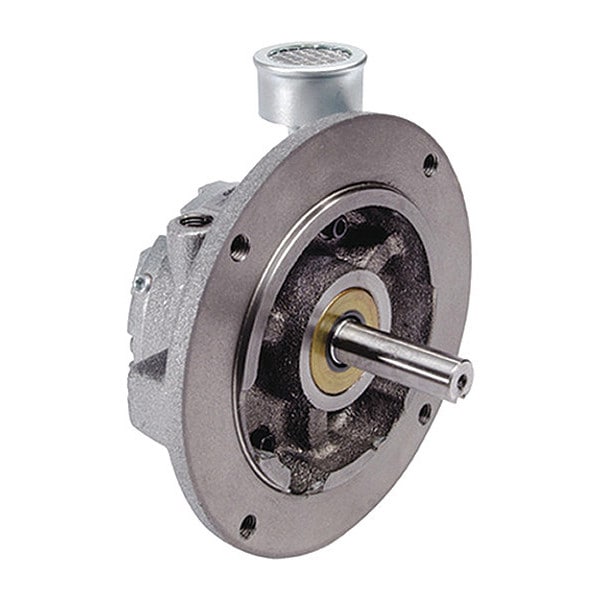

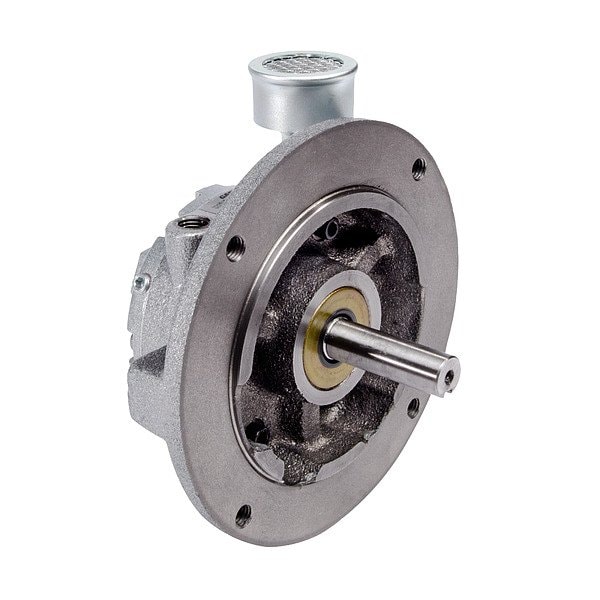

Gast Standard 2Am-Nrv-90 Air Motor

  • Mfr # 2AM-NRV-90

  • Zoro # G0602528

product price:
$
486.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
5 7/8 in
Shaft Length
2 in
Mount Type
Face
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2AM-NRV-90
Zoro #
G0602528
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CW/CCW
Mount Type
Face
Standards
ATEX
Includes
Muffler
Minimum Flow Rate
1 cfm
Series
2AM
Housing Material Finish
Painted
No Load Speed
3,000 RPM
Nameplate Speed
3,000 RPM
Output Power @ 25% Maximum Speed
0.3 hp
Air Inlet Type
NPT
Maximum Ambient Temperature
248 Degrees F
Keyway Type
Square
Minimum Operating Pressure
20 psi
Mounting Orientation
Any Angle
System of Measurement
Inch
Maximum Flow Rate
30 cfm
Output Power @ 50% Maximum Speed
0.5 hp
Starting Torque
21 in-lb
Air Consumption
30 cfm
Housing Material Grade
G2500
Output Power @ Maximum Speed
0.9 hp
Weight
4.2 lb
Shaft Material Grade
30-36
Air Inlet Center to Center Distance
2 1/2 in
Minimum Ambient Temperature
34 Degrees F
Shaft Material
Steel
Maximum Torque
19.5 in-lb
Housing Material
Cast Iron
Maximum Operating Pressure
100 psi
Inlet Gender
Female
Motor Frame Material
Cast Iron
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
4
Alternate Part Number
2AM-NRV-251
Output Shaft Type
Keyed

Description

Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 30-36, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 4.2 lb, Housing Material Grade G2500, Housing Material Finish Painted
