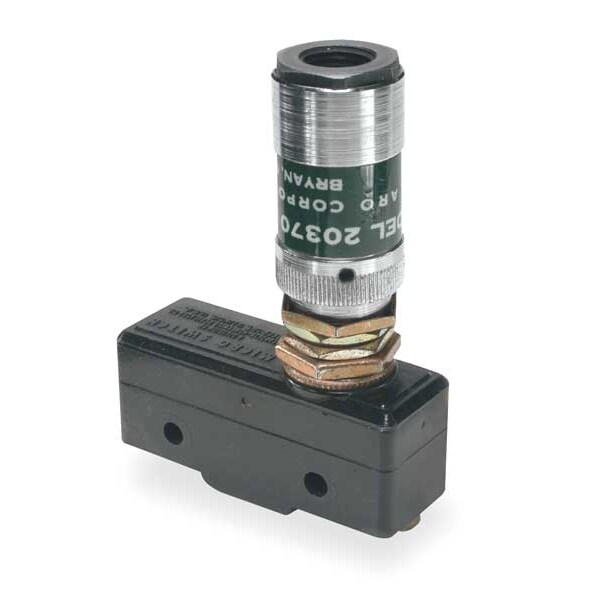

Microswitch, 125-480 Vdc, SPDT

Mfr # 114810
Zoro # G1529997

144.99

/ea

Free Shipping & Returns

Key Features

Voltage

125, 250, 480V AC

Standards

NEMA 4

For Use With

Alpha and Maxair Series

Contact Form

SPDT 1 NO, 1 NC

Switch Type

SPDT

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 114810
Zoro #: G1529997
UPC #: -
Country of Origin: United States

Dimensions

Length (In.): 1 15/16 in
Width (In.): 11/16 in
Height (In.): 2 5/8 in
Overall Length: 1 15/16 in
Overall Height: 2 5/8 in
Overall Width: 11/16 in
Wire Rope Length: 1 15/16 in
Length: 1 15/16 in

Details

Item: Electro-Pneumatic Actuator
Voltage: 125, 250, 480V AC
Standards: NEMA 4
For Use With: Alpha and Maxair Series
Contact Form: SPDT 1 NO, 1 NC
Switch Type: SPDT
Contact Rating (Amps): 1/2 A
Valve Max. Pressure Rating: 125 psi
Max. Temp. Range (F): 0 to 180
Max. Operating PSI: 125
Valve Temp. Range: 0 Degrees to 180 Degrees F
Maximum Operating Pressure: 125 psi
Input Voltage: 125V AC, 250V AC, 480V AC
Maximum Operating Temperature: 180 Degrees F
Contact Rating: 0.5 A
Minimum Operating Temperature: 0 Degrees F
Compatible with Series: Alpha, Maxair

Description

Electro-Pneumatic Actuator, Switch Type SPDT, Input Voltage 125V AC, 250V AC, 480V AC, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature 0 Degrees F, Maximum Operating Pressure 125 psi, Standards NEMA 4, Overall Height 2 5/8 in, Overall Length 1 15/16 in, Overall Width 11/16 in, Contact Rating 0.5 A, Compatible with Series Alpha, Maxair
