  5. Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location, Plastic Case Material

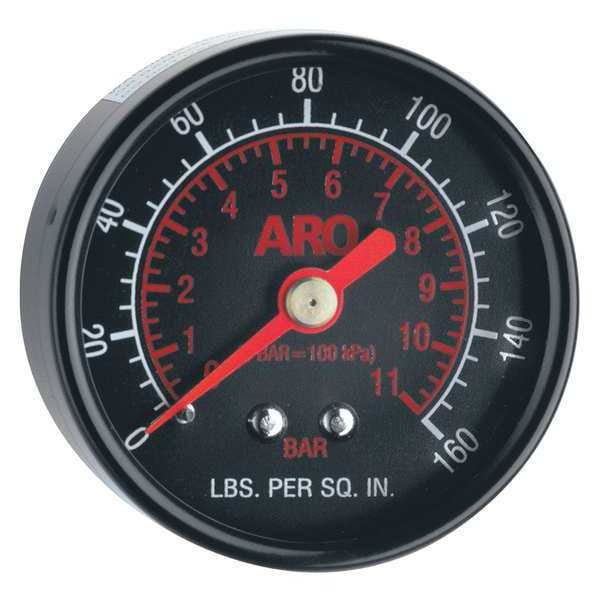

Aro Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location, Plastic Case Material 104500 - main

Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location, Plastic Case Material

  • Mfr # 104500

  • Zoro # G8532605

product price:  $24.55
/ea

Key Features

Accuracy
+/-3.00%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
104500
Zoro #
G8532605
UPC #
663023078328
Country of Origin
Taiwan, Province of China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Manufacturer Warranty Length
2 yr
Nominal Dial Diameter
2 in

Details

Item
Pressure Gauge
Accuracy
+/-3.00%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Plastic
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Gauge Application
General Purpose
Smallest Graduation
5 psi
Gauge Primary Range Smallest Graduation
5
Case Color
Black
Calibration Certificate Included
No
Case Material
Plastic
Socket Material
Brass
Connection Type
MNPT
Compatible Manufacturer Model Number
P2911, P2913
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Pressure Gauge Type
Commercial Pressure Gauge
Dial Color
White
Process Connection Gender
Male
Primary Scale Minor Graduations
5
Compatible Brand and Series
Ingersoll Rand ARO-Flo Series 1000, Ingersoll Rand ARO-Flo Series 1500, Ingersoll Rand ARO-Flo Series 2000, Ingersoll Rand ARO-Flo Series 3000
Ambient Operating Temperature Range
0 Degrees to 150 Degrees F
Pressure Range Type
Pressure
Adjustable Pointer
No
Scale Type
Single
Pointer Color
Red
Sensor Material
bourdon tube
Operating Temperature Range
0 Degrees to 150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Field Fillable
No
Process Media Temperature - Minimum
32 Degrees F
Operating Temperature - Minimum
0 Degrees F
Compatible with Series
1000, 1500, 2000, 3000 series
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Maximum
11 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Units
bar
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Accuracy Grade
Not Graded
Case Liquid
None

Description

Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3.00 Percent, Gauge Case Material Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, Primary Pressure Range 0 to 160, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Socket Material Brass, Sensor Material bourdon tube
