  5. Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

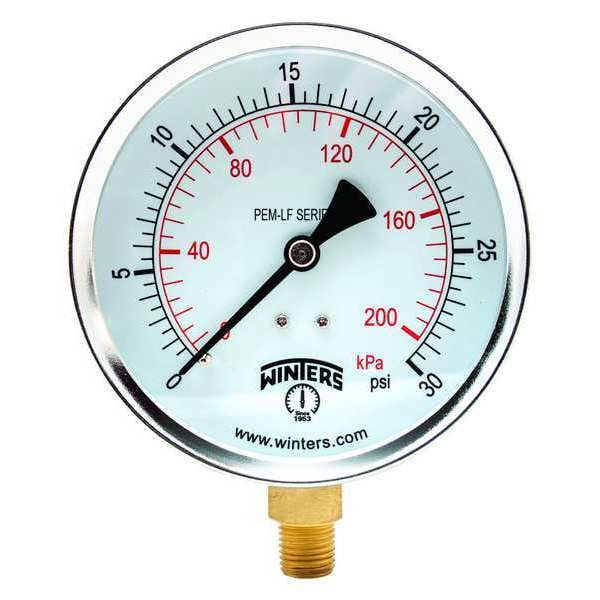

Winters Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material PEM221LF - main

Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PEM221LF

  • Zoro # G6155931

product price:  $27.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PEM221LF
Zoro #
G6155931
UPC #
628311202748
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
4.90"
Case Depth
1.46 in
Case Diameter
3.941 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Glass
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Characteristics
Friction Bezel Ring
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Color
Black
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Connection Type
MNPT
Standards
ANSI/ASME, CRN, NSF
Wetted Materials
Brass / Bronze
Sensor Material
Phosphor Bronze
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 200
Process Connection Gender
Male
Pressure Gauge Type
Lead-Free Pressure Gauge
Dial Face Material
Aluminum
Bezel Material
Steel
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Scale Type
Dual
Case Construction
Welded Joint
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Over-Pressure Limit
25% of Full Scale
Includes Vent Plug
No
Freeze Resistant Movement
No
Pointer Color
Black
Dial Color
White
Case Finish
Painted
Field Fillable
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Non-Sparking
No
Sensor Type
Bourdon Tube
Secondary Scale Units
kPa
Process Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Grade
Grade B
Dry Dampening Feature
None
Vibration Resistance
None
Removable Bezel
No
Gauge Case Liquid
None
Pointer Material
Aluminum
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Movement Material
Lead Free Brass
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
30 psi
Case Liquid
None
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Compatible with Brand
Universal

Description

Lead-Free Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
