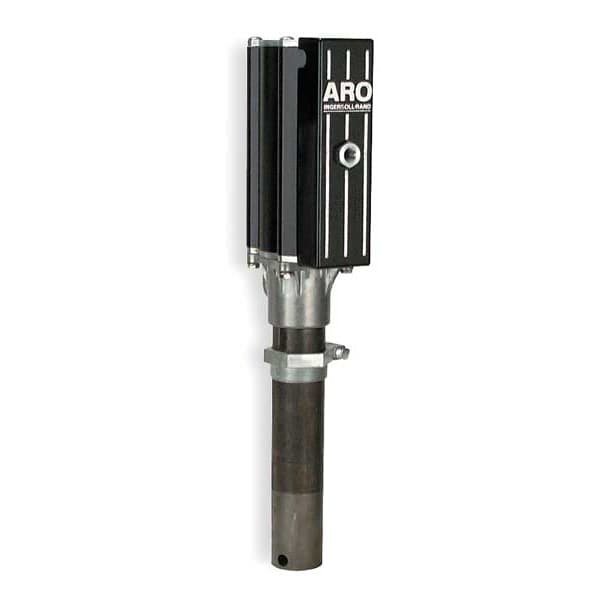

Aro Pump, Oil, Stub, 5:1 LM2305A-11-B - main

Pump, Oil, Stub, 5:1

  • Mfr # LM2305A-11-B

  • Zoro # G1123665

product price: $975.99
/ea
Free Shipping & Returns

Key Features

Type
Heavy Duty High Flow
Air Motor Size (In.)
3
Pump Ratio
5:1
Container Size
Stub
Working Flow Max. (GPM)
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LM2305A-11-B
Zoro #
G1123665
UPC #
663023112824
Country of Origin
India

Dimensions

Air Motor Size (In.)
3
Container Size
Stub
Air Inlet Size
1/4 FNPT
For Container Size
55 gal
Bung Connection Dia.
2 in
Container Size Included
Stub
Suction Tube Length
9 3/4 in

Details

Item
Air Operated Drum Pump
Type
Heavy Duty High Flow
Pump Ratio
5:1
Working Flow Max. (GPM)
6
Max. Air Inlet PSI
150
Outlet Pressure Max. (PSI)
750
Fluid Inlet Thread (In.)
1-1/2 FNPT
Max. Output
6 gpm
Air Inlet (In.)
1/4
Includes
Bung Adapter
Fluid Outlet Thread (In.)
1/2 FNPT
Fluid In/Out NPT (F)
1-1/2-1/2
Compatible Chemicals
Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Power Source
Air
Max. Flow Rate
4.3 gpm
For Media Type
Hydraulic Oils (Petroleum), Motor Oil
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Metered
No
Includes Suction Tube
Yes
Includes Nozzle
No
Includes Discharge Hose
No
For Container Type
Drum
Includes Spout
No
Max. Outlet Pressure
750 psi
Grease
NT
Gear Lube
NT
Air Consumption
28 cfm
Max. Air Pressure
150 psi
Includes Bung Adapter
Yes
Discharge Connection Type
NPTF
Min. Air Pressure
0 psi
Max. Oil Flow
4.3 gpm
Max. Viscosity
2,000 cps
Housing Material - Pumps
Carbon Steel
Ratio
5:1

Description

Air Operated Drum Pump, Max. Air Pressure 150 psi, Discharge Connection Type NPTF, Bung Connection Dia. 2 in, Air Consumption 28 cfm, Hose Length Not Applicable, Includes Discharge Hose No, Max. Viscosity 2,000 cps, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout No
