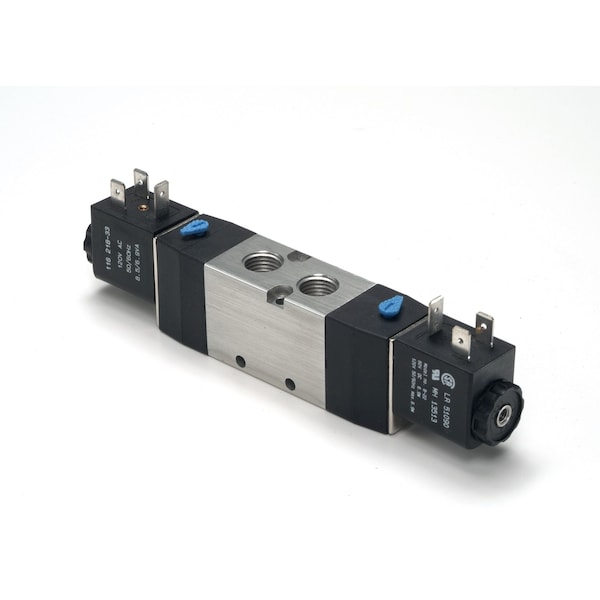

Solenoid Air Con Valve, Four-Way, 115 psi

  • Mfr # M314SD-024-D

  • Zoro # G4392955

product price:
$
390.90
/ea
Free Shipping & Returns

Key Features

Overall Length
11 17/32 in
Overall Width
1 11/32 in
Overall Height
1 31/32 in
Voltage
24V DC
Valve Ways and Positions
4-Way/3-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M314SD-024-D
Zoro #
G4392955
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
11 17/32 in
Overall Width
1 11/32 in
Overall Height
1 31/32 in
Pilot Port Size
1/2" NPT
Inlet Port Connection Size
1/2 in
Pilot Port Connection Size
10-32
Exhaust Port Connection Size
1/2 in
Wire Rope Length
11 17/32 in
Length
11 17/32 in

Details

Item
Solenoid Air Control Valve
Voltage
24V DC
Valve Ways and Positions
4-Way/3-Position
Override
Non-Locking
Shifting Technology
Double Pilot; Double Solenoid; Spring Centered
NEMA Classification
NEMA 4
Operational Pressure Range
45 to 140 psi
Ambient Temp. Range
15 Degrees to 122 Degrees F
Max. CFM - Valves
150 scfm
Valve Actuator / Return
Double Solenoid
Body Style
Side-Ported
Power Consumption
5.4 W
Exhaust Port Connection Gender
Female
Spool Material
Aluminum
Body Features
Single
Operating Temperature - Maximum
122 Degrees F
Inlet Port Connection Gender
Female
Number of Ports
5
Valve Action
Normally Closed
Fail Position
Closed
Operating Pressure - Maximum
115 psi
Number of Ways
Four-Way
Pilot Type
Internal Pilot
Number of Positions
Three-Position
Flow Rate - Maximum
150 cfm
Actuator Type
Double Solenoid
Coefficient of Volume (Cv)
4.32
Inlet Port Connection Type
NPT
Electrical Connection Type
DIN Solenoid Connector
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Valve Type
Spool
Pilot Port Connection Gender
Female
Operating Pressure - Minimum
45 psi
Return Action
Solenoid Return
Center Position
Closed
Exhaust Port Connection Type
NPT
Vacuum Rating
Not Vacuum Operable
Operating Temperature - Minimum
15 Degrees F
For Media
Air
Pilot Port Connection Type
NPT
Includes Solenoid Coil
Solenoid Coil Included
Includes Mounting Hardware
Hardware Not Included
NEMA Rating
4
Response Time
7 msec
Series
MaxAir

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 24V DC, Center Position Closed, Valve Actuator / Return Double Solenoid, ISO Class Not Applicable, Max. CFM - Valves 150 scfm, Operational Pressure Range 45 to 140 psi, NEMA Classification NEMA 4, Body Style Side-Ported, Pilot Port Size 1/2 In. NPT, Pilot Pressure Not Applicable, Shifting Technology Double Pilot; Double Solenoid; Spring Centered, Power Consumption 5.4 W, Ambient Temp. Range 15 Degrees to 122 Degrees F
