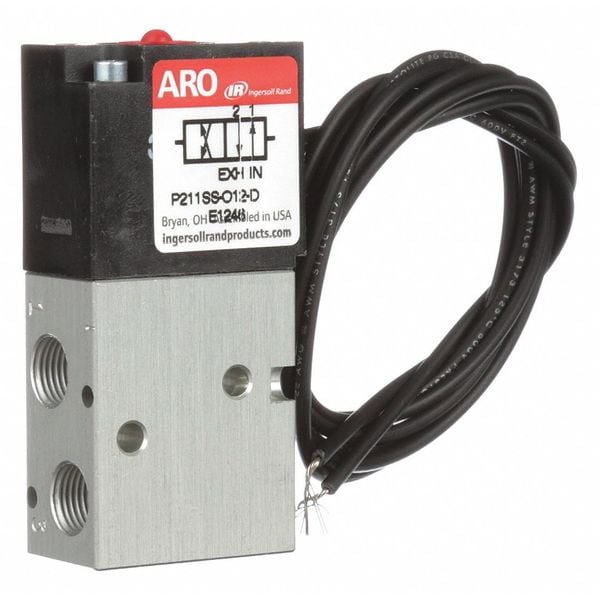

Solenoid Air Control Valve, 1/8 In, 12VDC

  • Mfr # P211SS-012-D

  • Zoro # G2681366

product price:  $164.99
/ea
Free Shipping & Returns

Key Features

Body Style
Body-Ported
Series
Premair
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
4.5 W
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P211SS-012-D
Zoro #
G2681366
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
2 3/4 in
Overall Width
1 in
Pipe Size
1/8 in
Overall Length
1 1/4 in
Exhaust Port Connection Size
1/8 in
Inlet Port Connection Size
1/8 in
Pilot Port Connection Size
1/8 in

Details

Item
Solenoid Air Control Valve
Body Style
Body-Ported
Series
Premair
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
4.5 W
Coefficient of Volume
0.144
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
Lead Wire
Valve Ways and Positions
4-Way/2-Position
CFM
6.9
NEMA Classification
NEMA 4
Ambient Temp. Range
32 Degrees to 125 Degrees F
Valve Vacuum Range
0 to 29 in Hg
Max. CFM - Valves
6.9 cfm
Operational Pressure Range
0 to 120 psi
Air Valve Type
4-Way, 2-Position
Shifting Technology
Direct
Pressure Range
0 to 120 psi
Number of Ways
Four-Way
Number of Positions
Two-Position
Inlet Port Connection Type
NPT
Actuator Type
Single Solenoid
Operating Temperature - Maximum
125 Degrees F
Flow Rate - Maximum
6.9 cfm
Coefficient of Volume (Cv)
0.144
Electrical Connection Type
Hardwired
Return Action
Spring Return
Response Time
20 msec
Body Features
Single
Operating Pressure - Maximum
125 psi
For Media
Air, Inert Gas
Vacuum Rating
Not Vacuum Operable
Fail Position
Open
Poppet Material
Stainless Steel
Operating Temperature - Minimum
32 Degrees F
NEMA Rating
4
Valve Action
Normally Open
Inlet Port Connection Gender
Female
Includes Mounting Hardware
Hardware Not Included
Exhaust Port Connection Gender
Female
Number of Ports
4
Pilot Port Connection Type
NPT
Exhaust Port Connection Type
NPT
Product Type
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Poppet
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 12V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/8 in, Max. CFM - Valves 6.9 cfm, Operational Pressure Range 0 to 120 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 0.144, Lead Wire Electrical Connections, Shifting Technology Direct
