Shop All Solenoid Coils
Aro

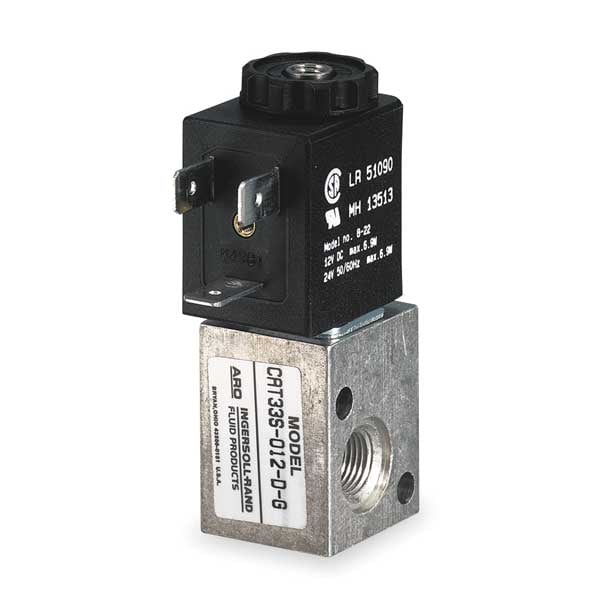

Solenoid Air Control Valve, 1/8 In, 24VDC

product price: $109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V DC
  • Shifting Technology Direct
  • Pressure Range 0 to 150 psi
  • Standards CSA #LR51090, UL #MH13513
  • Actuator/Return Solenoid/Spring
See all product information

Product Information

Dimensions

Overall Width 7/8 in
Overall Length 1 5/8 in
Overall Height 2 11/16 in
Pipe Size 1/8 in

Details

Voltage 24V DC
Shifting Technology Direct
Pressure Range 0 to 150 psi
Standards CSA #LR51090, UL #MH13513
Actuator/Return Solenoid/Spring
Max. CFM - Valves 1.8 cfm
Power Consumption 1.1 W
Body Style Stackable
Operational Pressure Range 0 to 150 psi
Air Valve Type 3-Way, 2-Position
Normally Open / Normally Closed Normally Closed
Valve Ways and Positions 3-Way/2-Position
NEMA Classification NEMA 4
Item Solenoid Air Control Valve
Electrical Connections DIN Connectors
Ambient Temp. Range 0 Degrees to 122 Degrees F
Coefficient of Volume 0.048
Valve Actuator / Return Solenoid / Spring
CFM 1.8

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 1.8 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Stackable, Coefficient of Volume 0.048, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 1.1 W, Ambient Temp. Range 0 Degrees to 122 Degrees F, Overall Height 2 11/16 in
