Aro

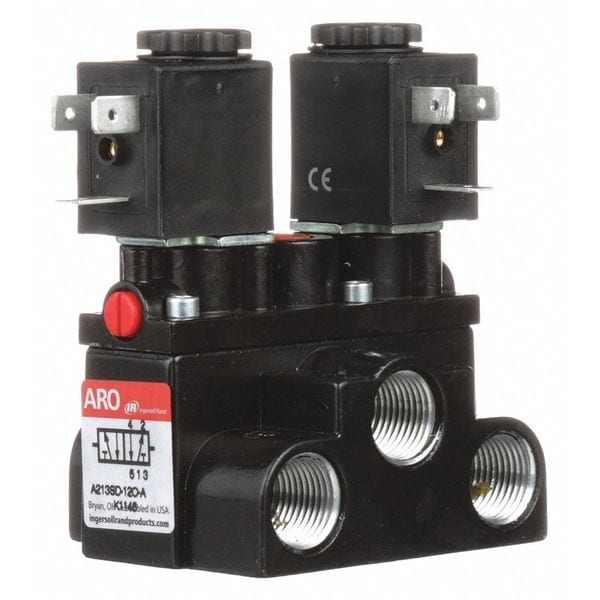

Solenoid Air Control Valve, 3/8 In, 120VAC

original price: $330.79
21% off
new price: $259.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 4-Way/2-Position
  • Voltage 120V AC
  • Valve Actuator / Return Solenoid / Solenoid
  • Coefficient of Volume 1.7
  • Pipe Size 3/8 in
See all product information

Product Information

Dimensions

Pipe Size 3/8 in
Overall Height 3 5/8 in
Overall Length 4 in
Overall Width 2 1/2 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 4-Way/2-Position
Voltage 120V AC
Valve Actuator / Return Solenoid / Solenoid
Coefficient of Volume 1.7
Max. CFM - Valves 61 cfm
Operational Pressure Range 50 to 150 psi
NEMA Classification NEMA 4
Power Consumption 4.8 W
CFM 61
Ambient Temp. Range 0 Degrees to 180 Degrees F
Electrical Connections DIN Connectors
Shifting Technology Solenoid/Pilot
Body Style Body Ported
Actuator/Return Solenoid/Solenoid
Pressure Range 50 to 150 psi
Valve Vacuum Range 0 to 29 in Hg
Air Valve Type 4-Way, 2-Position
Vacuum Range 29" Hg

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Solenoid, Pipe Size 3/8 in, Max. CFM - Valves 61 cfm, Operational Pressure Range 50 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Body Ported, Coefficient of Volume 1.7, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 4.8 W, Ambient Temp. Range 0 Degrees to 180 Degrees F
