Shop ARO

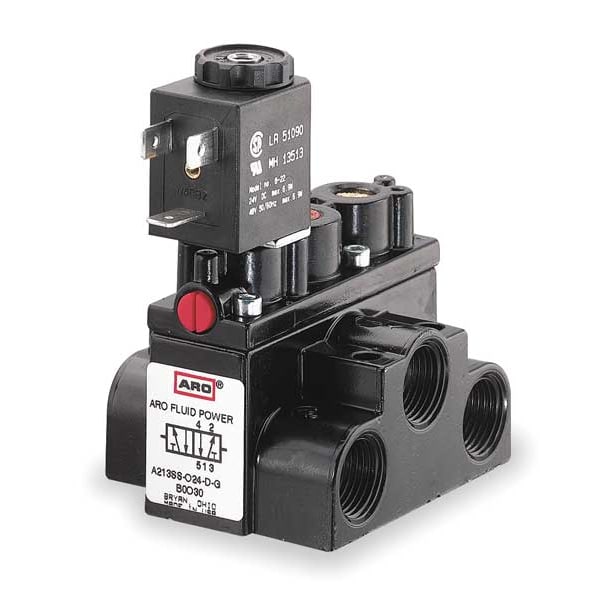

Solenoid Air Control Valve, 3/8 In, 24VDC

  • Mfr # A213SS-024-L

  • Zoro # G1794046

product price:
$
207.57
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
5.4 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A213SS-024-L
Zoro #
G1794046
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
5.4 W
Coefficient of Volume
1.7
Body Material
Zinc
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/2-Position
Max. CFM - Valves
61 cfm
Shifting Technology
Solenoid/Pilot
Pressure Range
0 to 115 psi
Air Valve Type
4-Way, 2-Position
Ambient Temp. Range
0 Degrees to 180 Degrees F
CFM
61
NEMA Classification
NEMA 4
Operational Pressure Range
0 to 115 psi
Valve Vacuum Range
0 to 29 in Hg
Standards
cURus Listed
Number of Positions
Two-Position
Number of Ways
Four-Way
Pilot Type
Internal Pilot
Pilot Port Connection Type
NPT
Body Features
Single
Includes Solenoid Coil
Solenoid Coil Included
Electrical Connection Type
DIN Solenoid Connector
Flow Rate - Maximum
61 cfm
Exhaust Port Connection Gender
Female
Inlet Port Connection Type
NPT
Number of Ports
5
Coefficient of Volume (Cv)
1.7
Spool Material
Aluminum
Product Type
Solenoid Air Control Valve
For Media
Compressed Air, Inert Gas
NEMA Rating
4
Actuator Type
Single Solenoid
Valve Type
Spool
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
0 Degrees F
Inlet Port Connection Gender
Female
Return Action
Spring Return
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Response Time
22 msec
Fail Position
Open
Valve Action
Normally Open
Operating Pressure - Maximum
150 psi
Includes Mounting Hardware
Hardware Not Included
Lubrication
Lubrication Not Required
Vacuum Rating
Vacuum Operable

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 3/8 in, Max. CFM - Valves 61 cfm, Operational Pressure Range 0 to 115 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Base-Mounted, Pilot Pressure Not Applicable, Coefficient of Volume 1.7, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot
