Aro

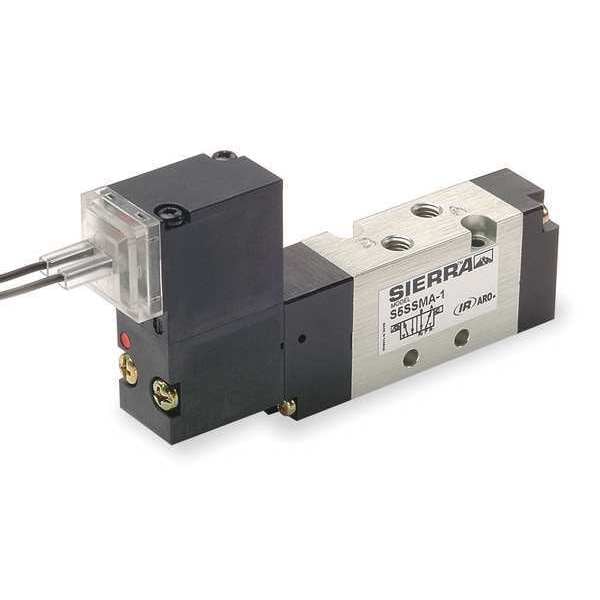

Solenoid Air Control Valve, 5/16In, 120VAC

product price: $100.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 4-Way/2-Position
  • Voltage 120V AC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.25
  • Pipe Size 10-32 UNF
See all product information

Product Information

Dimensions

Pipe Size 10-32 UNF
Overall Height 1 3/4 in
Overall Width 19/32 in
Overall Length 3 25/64 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 4-Way/2-Position
Voltage 120V AC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.25
Max. CFM - Valves 9 cfm
Operational Pressure Range 0 to 115 psi
NEMA Classification NEMA 4
Air Valve Type 4-Way, 2-Position
Electrical Connections Lead Wire
Actuator/Return Solenoid/Spring
Pressure Range 0 to 115 psi
Body Style Body Ported
Shifting Technology Solenoid/Pilot
Ambient Temp. Range 0 Degrees to 122 Degrees F
CFM 9
Override Non-Locking Push

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 10-32 UNF, Max. CFM - Valves 9 cfm, Operational Pressure Range 0 to 115 psi, NEMA Classification NEMA 4, Body Style Body Ported, Coefficient of Volume 0.25, Lead Wire Electrical Connections, Shifting Technology Solenoid/Pilot, Ambient Temp. Range 0 Degrees to 122 Degrees F, Override Non-Locking Push, Overall Height 1 3/4 in, Overall Length 3 25/64 in
