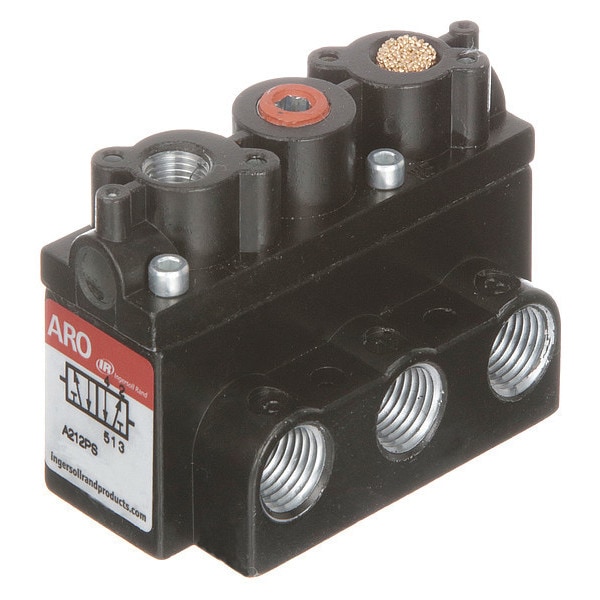

Valve, Air, Pilot, 1/4 In

ARO| Zoro #: G2327281| Mfr #: A212PS

$54.57 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2327281 Mfr #: A212PS
Number of Ways: 4Number of Positions: 2
Pilot Port Size NPT (In.): 1/8 (F)Max. Temp. Range (F): 0 to 180
Vacuum: Rated to 29 In/HgCycles per Minute: Up to 600
Uses: For Air or Inert GasCoefficient of Volume: 1.50
Item: Air Pilot Directional ValveType: Body Ported
Actuator/Return: Pilot/SpringPort Size (In.): 1/4
CFM: 50Max. Operating PSI: 150
Pilot Pressure: 50 PSILength (In.): 2-15/16
Width (In.): 1-15/16Height (In.): 1-13/16
Country of Origin (subject to change): United States

Product Description

Pilot Air Valve, NPT Port 1/4 Inch, Actuator/Return Pilot/Spring, Maximum Operating Pressure 150 PSI, Air Flow 54 CFM, Cv 1.5, Maximum Temperature 0-180 Degrees Fahrenheit, Length 2 15/16 Inches, Height 1 13/16 Inches, Width 1 15/16 Inches, 4 Way, 2 Position
