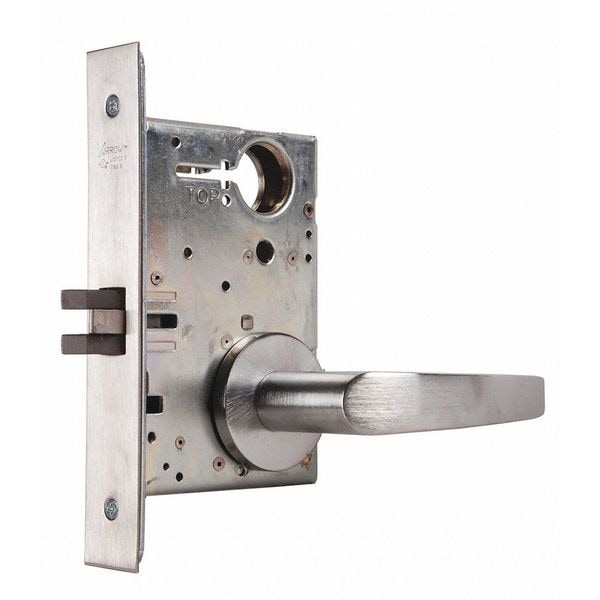

Arrow Lock Door Lever Lockset, Mechanical, Passage BM01 VL 26D - main

Door Lever Lockset, Mechanical, Passage

  • Mfr # BM01 VL 26D

  • Zoro # G2524118

product price: $420.46
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal or Wood Doors
Includes
Plastic Template, Screw Pack, Single Side Indicator Plate with Mechanism
Key Type
Keyed Alike
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BM01 VL 26D
Zoro #
G2524118
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1 1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal or Wood Doors
Includes
Plastic Template, Screw Pack, Single Side Indicator Plate with Mechanism
Key Type
Keyed Alike
Keyway Type
Schlage
Location Type
Commercial, Residential
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Number of Pins
0
Series
BM
Style
Tapered No Return
Number of Keys
2
Strike Dim.
4-7/8 in x 1-1/8 in
Lockset Fire Rating
3 hr
Handle Material
Brass
Mortise / Cylindrical
Mortise
Lockset Finish
Satin Chrome
ADA Compliant
Yes
Key Material
Nickel Silver
Cylinder Core Type
Interchangeable Core Cylinder
Strike Type
Straight Lip
Item
Door Lockset
Ligature Resistant
No
Features
Master Keying
Lockset Performance Strength
Heavy Duty
Standards
ANSI A156.13, UL and ULC Listed
Application
Commercial, Hospitals, Schools
Strike
Includes
Visual Indicator Message
No Message
Product Type
Trim
Lockset Function ANSI Code
F01
Includes Core
Core Not Included
Lockset Type
Mechanical
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
Curved Lip
Latch Bolt/Dead Bolt
Latch Bolt
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed
Knob/Handle Material
Brass
Locking/Unlocking Access - Inside
Not Lockable
Performance Grade
1
ANSI Grade
1

Description

Door Lever Lockset,Mechanical,Passage
