Arrow Pneumatics

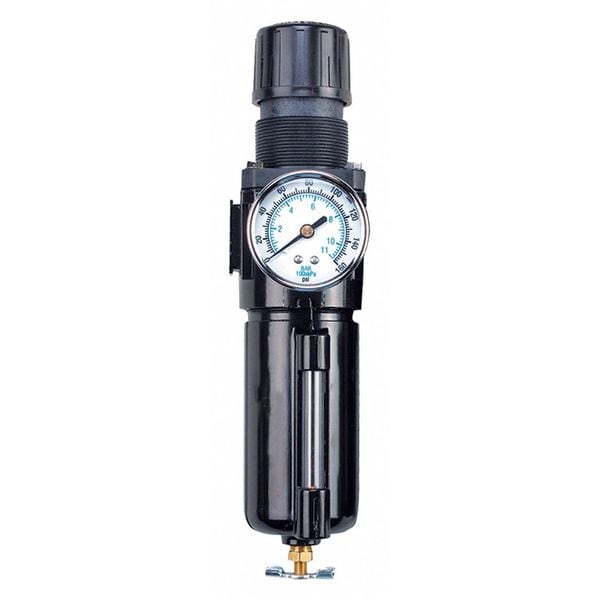

Filter/Regulator, Metal Bowl, 1/2"

original price: $125.79
13% off
new price: $108.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/2 in NPT
  • Filter Rating - Air Treatment 40 micron
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 150 cfm
  • Adjustment Range - Air Treatment 5 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/2 in NPT
Size - Air Treatment Standard
Bowl Size - Air Treatment 6.0 oz
Gauge Port Size 1/2 in NPT
Overall Width 2 11/16 in
Overall Height 9.75 in
Air Inlet Size 1/2 in
Pressure Gauge Port Size 1/2 in
Air Outlet Size 1/2 in
Overall Depth 2 1/4 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 40 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 150 cfm
Adjustment Range - Air Treatment 5 to 125 psi
Bowl Material - Air Treatment Metal with Sight Gauge
Item Filter-Regulator
Filter Rating 40 micron
Max. Temp. 175 Degrees F
Adjustment Knob Non Rising
Includes Metal Bowl with Sight Gauge
Drain Type Manual
For Removal Of Particles, Water
Sight Gauge Included Yes
Weight 1.75 lb
Pressure Gauge Port Type NPT
For Substance Type Particles, Water
Number of Air Inlets 1
Filter Type Particulate
Pressure Gauge Included Yes
Drain Included Yes
Minimum Operating Pressure 5 psi
Filter Bowl Material Metal
Maximum Regulated Pressure 125 psi
Seal Material Buna-N
Maximum Operating Temperature 160 Degrees F
Maximum Operating Pressure 200 psi
Air Inlet Type NPT
Minimum Regulated Pressure 5 psi
Minimum Operating Temperature 40 Degrees F
Maximum Flow Rate 100 cfm
Air Outlet Type NPT
Filter Bowl Capacity 6 oz
Number of Air Outlets 1
Body Material Aluminum

Description

Filter-Regulator, Filter Bowl Material Metal, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 100 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 200 psi, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 2 11/16 in, Air Outlet Size 1/2 in, Air Outlet Type NPT, Drain Included Yes, Filter Bowl Capacity 6 oz
