Shop ASAHI

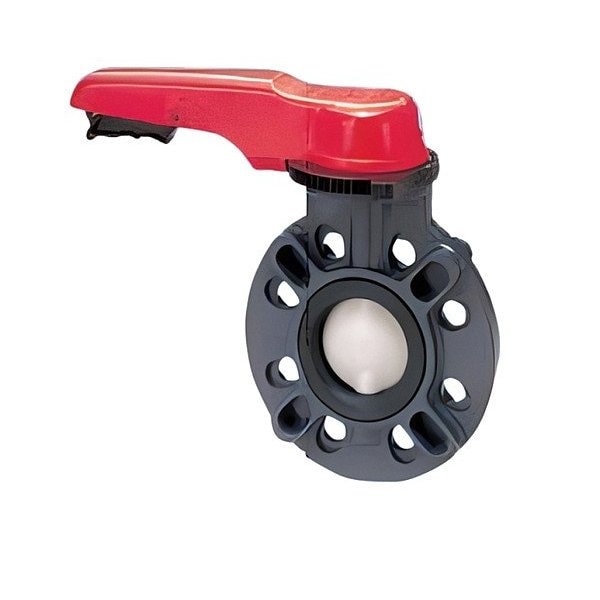

Butterfly Valve, 8" Pipe Size, PVC

  • Mfr # 173730080

  • Zoro # G6159977

product price:
$
972.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
PVC
Tube Size
8in
Pipe Size
8 in
Max. Water Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
173730080
Zoro #
G6159977
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
8in
Pipe Size
8 in
Bolt Circle Dia.
11 3/4 in
Nominal Valve Size
8 in
Handle Length
15.75 in

Details

Item
Butterfly Valve
Style
Wafer
Body Material
PVC
Max. Water Pressure
150 psi
Max. Vacuum
29 in Hg
Handle Type
Lever
Standards
ISO 5211
Temp. Range
30 Degrees to 175 Degrees F
Disc Material
Polypropylene
Compliance
ASTM D1784 Cell Class 12454A
Number of Bolt Holes
8
Liner Material
EPDM
Handle Material
Polypropylene
Seal Material
EPDM
Operating Temperature - Minimum
30 Degrees F
Stem Material
316 Stainless Steel
Coefficient of Volume (Cv)
2,500
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Operating
150 psi
Operating Temperature - Maximum
140 Degrees F
For Media
Chemicals, Water
Vacuum Service Rating
-29.92 in Hg
NSF Certifications for Food and Drinking Water
NSF 61
Disc Alignment
Concentric
Includes Disc Position Indicator
Disc Position Indicator Included
Connection Type
Wafer
Number of Flange Bolt Holes
8
Number of Stop Positions
19
Handle - Locking
Locking
3-A Standard Compliance
Not Rated
Valve Series
57P

Description

Butterfly Valve, Wafer Style, Body Material PVC, Max. Water Pressure 150 psi, Max. Vacuum 29 in Hg, Pipe Size 8 in, Temp. Range 30 Degrees to 175 Degrees F, Liner Material EPDM, Disc Material Polypropylene, Handle Type Lever, Number of Bolt Holes 8, Bolt Circle Dia. 11 3/4 in, Standards ISO 5211, ASTM D1784 Cell Class 12454A
