Shop ASAHI

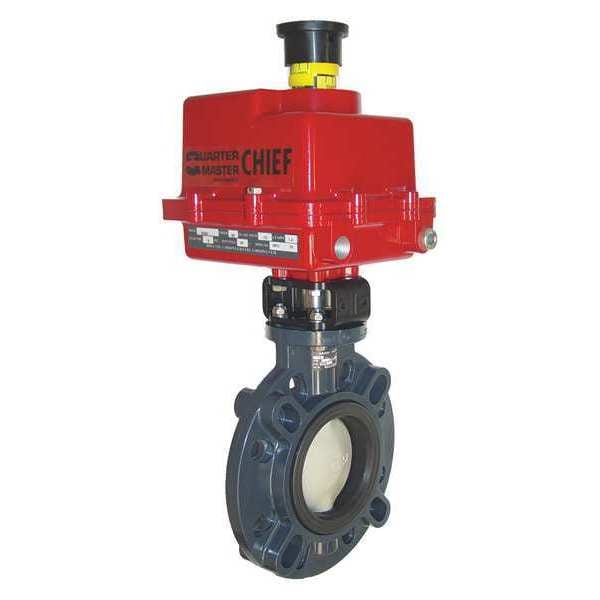

Butterfly Valve, 8" Pipe Size, PVC

  • Mfr # 2910080

  • Zoro # G6160835

product price:
$
3,367.99
/ea
Free Shipping & Returns

Key Features

Body Material
PVC
Pipe Size
8 in
Connection
Flange
Voltage
120V AC
Max. Water Pressure
150 psi WOG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2910080
Zoro #
G6160835
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
8 in
Bolt Circle Dia.
11 3/4 in
Nominal Valve Size
8 in

Details

Item
Butterfly Valve
Body Material
PVC
Connection
Flange
Voltage
120V AC
Max. Water Pressure
150 psi WOG
Number of Bolt Holes
8
Standards
UL-508 Listed
Seat Material
EPDM
Compliance
UL-512
Mount
Bracket
Actuator Motor Type
Reversing
NEMA Enclosure Rating
4X
Actuator Electrical Entry
1/2 in NPT Conduit
Actuator Ambient Temperature - Maximum
150 Degrees F
Average Surface Roughness (Ra)
Not Rated
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
150 psi
For Media
Gas, Oil, Water
Number of Flange Bolt Holes
8
Actuator Maximum Torque
2,000 in-lb
Actuator Input Control Signal
4-20 mA
Actuator Series
92
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
73 Degrees F
Actuator Features
Auxiliary Limit Switch, Manual Override, Thermal Overload Protection
Valve Series
92

Description

Butterfly Valve, Body Material PVC, Pipe Size 8 in, Voltage 120V AC, Max. Water Pressure 150 psi WOG, Bolt Circle Dia. 11 3/4 in, Number of Bolt Holes 8, Connection Flange, Mount Bracket, Seat Material EPDM, UL-512, Standards UL-508 Listed
