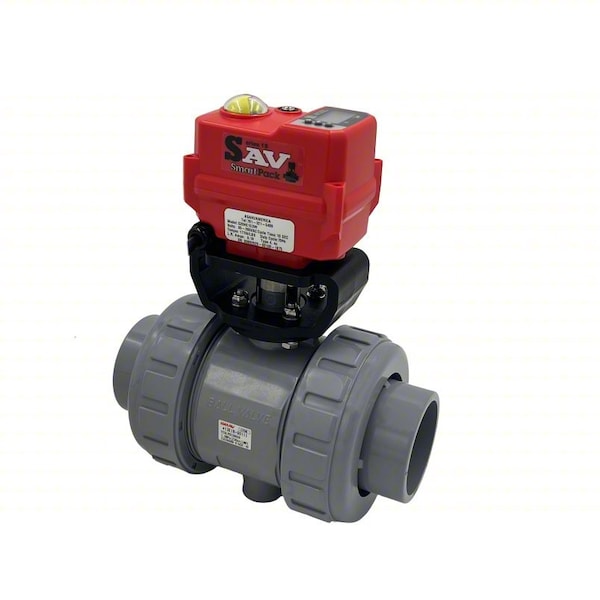

Electrically Actuated Two-Way Ball Valve

  • Mfr # 16107130010

  • Zoro # G810397403

product price:
$
928.99
/ea
Free Shipping & Returns

Key Features

Body Material
PVC
Seal Material
EPDM
Stem Material
PVC
Seat Material
PTFE
Ball Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16107130010
Zoro #
G810397403
UPC #
-
Country of Origin
United States
Body Material
PVC
Seal Material
EPDM
Stem Material
PVC
Seat Material
PTFE
Ball Material
PVC
Standards
CE Compliant
Voltage
95 to 265V AC
Item
Electrically Actuated Two-Way Ball Valve
Connection Type - Side 2
NPT
Valve Ways
2-Way
Connection Type - Side 1
NPT
Fail Safe Position
Fail Last
Included Mounting
ISO 5211 Actuator Mounting Pad
For Media
Water; Chemicals
Valve Construction
One-Piece
Actuator Duty Cycle
75 %
Pipe Schedule Compatibility
Schedule 80
Actuator Features
Manual Override, Position Indicator, Heater
Connection Gender - Side 2
Male
Maximum Pressure - Operating
150 psi
Operating Temperature - Maximum
70 Degrees F
Manufacturer Warranty
3 yr
Actuator Enclosure Material
Thermoplastic
Operating Temperature - Minimum
30 Degrees F
Actuator Motor Type
Reversing
Vented Ball Valve
Non-Vented
Ball Port Style
Full Port
Connection Gender - Side 1
Male
Actuator Cycle Time - 90 Degrees
10 sec
Valve Body Style
Straight
Actuator Operation
90 Degrees
NEMA Enclosure Rating
4X
Valve Series
T-27

Description

Electrically Actuated Two-Way Ball Valve, Ball Material PVC, Nominal Valve Size 1 in, Maximum Pressure - Operating 150 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material EPDM, Voltage 95 to 265V AC, Fail Safe Position Fail Last, Actuator Cycle Time - 90 Degrees 10 sec, Valve Construction One-Piece, Actuator Features Manual Override, Position Indicator, Heater, Connection Gender - Side 1 Male, Connection Type - Side 1 NPT
