Shop ASAHI

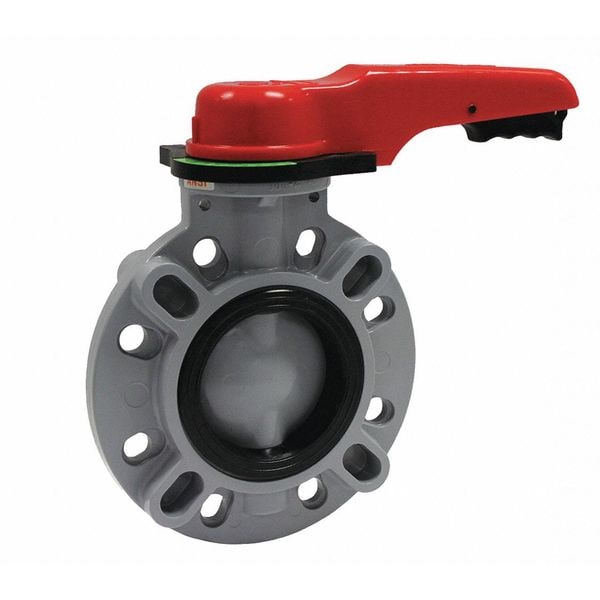

Valve, Wafer, CPVC, 2" Pipe Sz, Lever Handle

  • Mfr # 173881020

  • Zoro # G2756481

product price:  $413.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
CPVC
Tube Size
2in
Pipe Size
2 in
Max. Water Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
173881020
Zoro #
G2756481
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
2in
Pipe Size
2 in
Lug Dia.
1/4 in
Bolt Circle Dia.
4 1/4 in
Handle Length
8.66 in
Lug Diameter
1/4 in
Nominal Valve Size
2 in

Details

Item
Butterfly Valve
Style
Wafer
Body Material
CPVC
Max. Water Pressure
150 psi
Max. Vacuum
29.9 in Hg
Handle Type
Lever
Standards
ISO 5211
Temp. Range
30 Degrees to 195 Degrees F
Disc Material
CPVC
Liner Material
EPDM
Number of Bolt Holes
4
Seal Material
EPDM
Handle Material
Polypropylene
Operating Temperature - Maximum
195 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Operating
150 psi
Operating Temperature - Minimum
30 Degrees F
Disc Alignment
Concentric
Maximum Pressure - Steam
Not Rated
Includes Disc Position Indicator
Disc Position Indicator Included
Handle - Locking
Locking
3-A Standard Compliance
Not Rated
For Media
Chemicals, Water
Stem Material
316 Stainless Steel
Number of Flange Bolt Holes
4
Vacuum Service Rating
-29.92 in Hg
Coefficient of Volume (Cv)
120
Number of Stop Positions
19
Connection Type
Wafer
Valve Series
57P

Description

Butterfly Valve, Wafer Style, Body Material CPVC, Max. Water Pressure 150 psi, Max. Vacuum 29.9 in Hg, Pipe Size 2 in, Temp. Range 30 Degrees to 195 Degrees F, Liner Material EPDM, Disc Material CPVC, Handle Type Lever, Number of Bolt Holes 4, Bolt Circle Dia. 4 1/4 in, Lug Dia. 1/4 in, Standards ISO 5211

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
