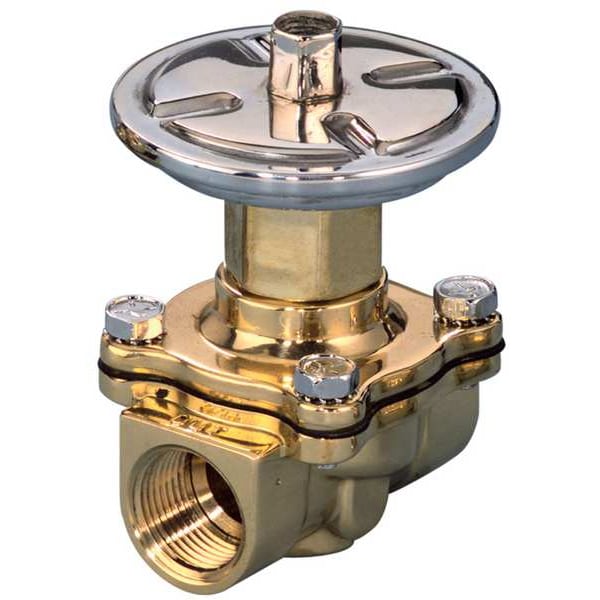

Air Operated Valve, 2-Way, NC, 1 In, FNPT

ASCO| Zoro #: G0946915| Mfr #: P210D004

$880.00 /ea

This item ships free. Details.Standard ground shipping.
Details:
Seat Material: NBR
Min. Operating Pressure Differential: 5 psi
Coefficient of Volume: 13
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0946915 Mfr #: P210D004
Seat Material: NBRMin. Operating Pressure Differential: 5 psi
Coefficient of Volume: 13Center Line Pipe Center Size: 4-3/8"
Pipe Size: 1"Overall Height: 6"
Orifice Dia.: 1"Gasket Material: NBR
Overall Width: 2-15/16"Overall Length: 3-3/4"
Item: Air Operated ValveBody Material: Brass
Valve Configuration: Normally ClosedAir Inlet: 1/8" FNPT
Max. Operating Pressure Differential: 125 psiInlet Pressure: 30 to 125 psi
Max. Fluid Temp.: 180 Degrees FValve Design: 2-Way
Country of Origin (subject to change): Mexico

Description

Air Operated Valve, Pipe Size 1 In., Valve Design 2-Way, Valve Configuration Normally Closed, Orifice Dia. 1 In., Coefficient of Volume 13, Min. Operating Pressure Differential 5 psi, Max. Operating Pressure Differential 125 psi, Max. Fluid Temp. 180 Degrees F, Air Inlet 1/8 In. FNPT, Inlet Pressure 30 to 125 psi, Body Material Brass, Gasket Material NBR, Seat Material NBR, Center Line Pipe Center Size 4-3/8 In., Overall Length 3-3/4 In., Overall Width 2-15/16 In., Overall Height 6 In.
