Shop All Solenoid Valves
Asco

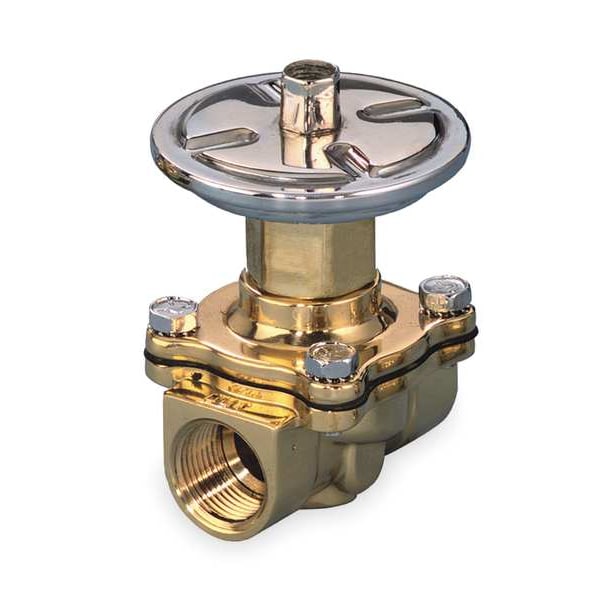

RedHat Air Operated Valve, 2-Way, NC, 3/4 In, FNPT

product price: $721.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Center Line Pipe Center Size 3 19/32 in
  • Pipe Size 3/4"
  • Valve Design 2-Way
  • Body Material Brass
  • Orifice Dia. 3/4 in
See all product information

Product Information

Dimensions

Center Line Pipe Center Size 3 19/32 in
Pipe Size 3/4"
Orifice Dia. 3/4 in
Overall Height 4 7/32 in
Overall Length 2 13/16 in
Overall Width 2 9/32 in
Center L"e Pipe Center Size 3 19/32"
Connection Size - Side 1 3/4 in
Nominal Valve Size 3/4 in
Connection Size - Side 2 3/4 in

Details

Item Air Operated Valve
Valve Design 2-Way
Body Material Brass
Valve Configuration Normally Closed
Gasket Material NBR
Max. Operating Pressure Differential 125 psi
Max. Fluid Temp. 180 Degrees F
Inlet Pressure 30 to 125 psi
Coefficient of Volume 5.5
Air Inlet 1/8 in FNPT
Min. Operating Pressure Differential 0 psi
Seat Material NBR
Seal Material Buna-N
Connection Gender - Side 2 Female
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Connection Gender - Side 1 Female
Operating Temperature - Maximum 180 Degrees F
Diaphragm Material Buna-N
Diaphragm Valve Type 2-Way
For Media Gas, Steam, Water
Ambient Temperature - Minimum 32 Degrees F
Valve Deactivated State Normally Closed (NC)
Coefficient of Volume (Cv) 5.5
Ambient Temperature - Maximum 125 Degrees F
Maximum Pressure - Operating 125 psi
Actuator Air Port Connection 1/8 in FNPT

Description

Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 5.5, Nominal Valve Size 3/4 in, Actuator Air Port Connection 1/8 in FNPT, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Gas, Steam, Water, Diaphragm Material Buna-N, Operating Temperature - Maximum 180 Degrees F, Maximum Pressure - Operating 125 psi, Valve Deactivated State Normally Closed (NC), Body Material Brass, Diaphragm Valve Type 2-Way, Seal Material Buna-N, Overall Length 2.81 in
