Contact our U.S. based teamSpecifications
Product Information
MFR #
H117AL122A209
Zoro #
G0634541
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Height
18.63 in
Overall Length
10.88 in
Overall Width
3.88 in
Pipe Size
3 in
Details
Item

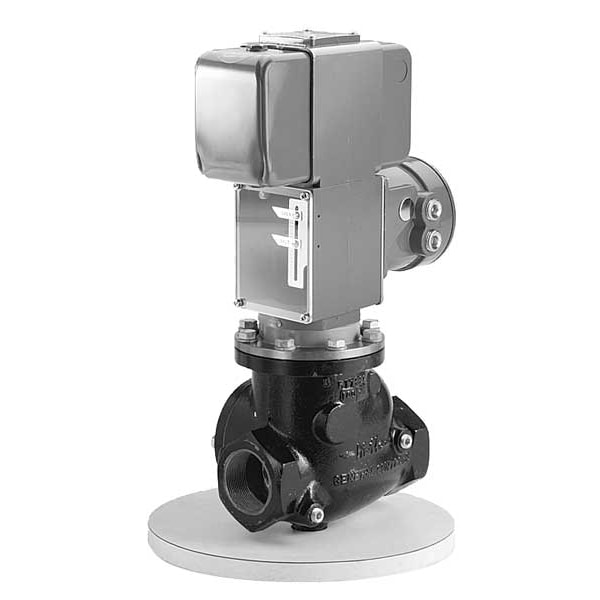

Electrohydraulic Gas Shutoff Valve
Body Material
Iron
Voltage
120V AC
Coefficient of Volume
320
Valve Design
2-Way/2-Position
NEMA Rating
1
Valve Configuration
Normally Closed
Hz
60/50
Min. Operating Pressure Differential
0 psi
Max. Fluid Temp.
150 Degrees F
Max. Operating Pressure Differential
8 psi
Opening Time
20 sec
Description
Electrohydraulic Gas Shutoff Valve, Pipe Size 3 in, Coefficient of Volume 320, Min. Operating Pressure Differential 0 psi, Max. Operating Pressure Differential 8 psi, Max. Fluid Temp. 150 Degrees F, 120V AC Voltage, 60/50 Hz, Opening Time 20 sec, 2-Way/2-Position, Normally Closed, Body Material Iron, NEMA Rating 1, Overall Length 10.88 in, Overall Width 3.88 in, Overall Height 18.63 in
