Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, NBR
Mfr # EF8215B070
Zoro # G1397672
Key Features
Specifications
Product Information
Dimensions
Description

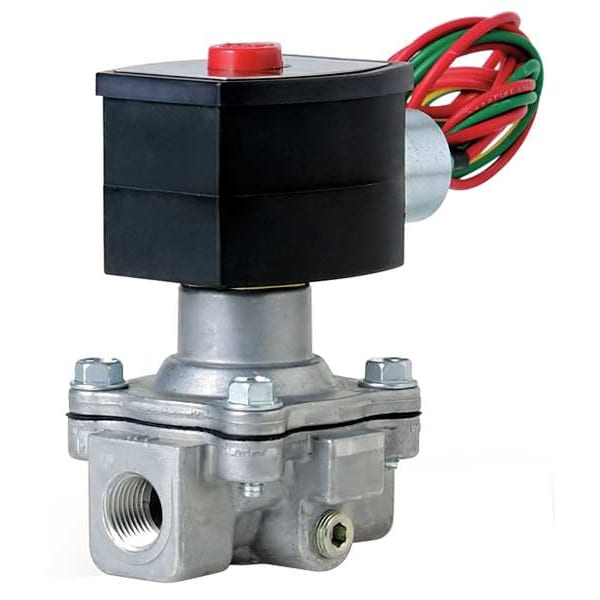

The ASCO EF8215B070 is a 2-way, 2-position solenoid valve designed for air and vacuum service. It features a direct acting operation with a normally closed valve starting configuration. The valve is constructed with an aluminum body and includes sealing components made from NBR material. It is intended for use with air and fuel gas media under operating pressures up to 25 psi differential. The coil enclosure is explosion-proof and watertight; IP65-rated; suitable for indoor and outdoor use per IP65. The valve comes supplied with the coil and supports 120V AC electrical input at 50 and 60 Hz frequencies.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed configuration
- Operation Type: Direct Acting
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Media Compatibility: Air, Fuel Gas
- Nominal Pipe Size: 1-1/2 in with NPT inlet and outlet connections
- Maximum Operating Pressure Differential: 25 psi (Air/Inert Gas, Water)
- Orifice Diameter: 1-5/8 in
- Coil Enclosure: Explosion Proof, Watertight
- Coil Insulation Class: F
- Electrical Connections: 1/2 in Conduit with 18 in Leads
- Voltage: 120V AC
- Wattage: 15.4 W
- Environmental Rating: Hazardous, Indoor, Outdoor
- Includes Coil: Yes; Includes Seal: Yes
- Flow Coefficient (Cv): 35
- Dimensions: Overall Height 6-27/32 in, Overall Length 5 in, Overall Width 5-3/8 in
- IP Rating: IP65
- Centerline Pipe Size: 5-19/32 in
