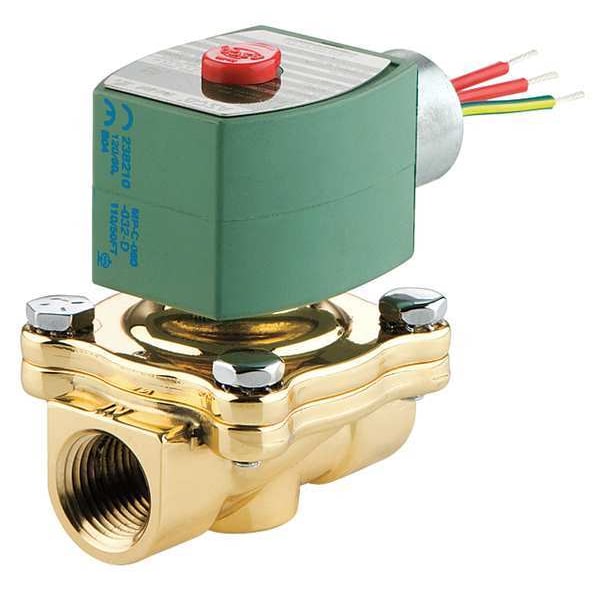

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, Manual Operator
- Mfr # 8210G022MO
- Zoro # G0687486
product price:
$
757.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1-1/2 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8210G022MO
- Zoro #
- G0687486
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1-1/2 in
- Overall Width
- 3-15/16 in
- Overall Height
- 6-1/8 in
- Overall Length
- 4-7/16 in
- Center Line Pipe Center Size
- 4-3/16 in
- Orifice Diameter
- 1-1/4 in
- Wire Rope Length
- 4 7/16 in
- Length
- 4 7/16 in
Description
The ASCO 8210G022MO is a 2-Way, 2-Position pilot-operated solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed valve starting configuration and operates with a 120V AC supply. The valve body is constructed from brass and has NPTF threaded inlet and outlet connections with a nominal pipe size of 1-1/2 inches. Its orifice diameter is 1-1/4 inches, allowing a flow coefficient (Cv) of 22.5. It is designed to be mounted vertically.
Key Features:
- Operating pressure differential: Minimum 5 psi; Maximum 150 psi for air/inert gas and water, 100 psi for light oil
- Operating temperature range: -10°C to 60°C (14°F to 140°F)
- Maximum fluid temperature: 180°F
- Coil included with insulation class F and wattage of 6.1 W
- Electrical connections via 1/2 inch conduit hub
- Coil enclosure is watertight without a junction box
- IP66 rating; NEMA enclosure ratings 1, 2, 3, 3S, 4, 4X
- Response time: 1 second
- Seal material: NBR (Nitrile)
- Dimensions: Overall height 6-1/8 in, length 4-7/16 in, width 3-15/16 in
- UL Listed standard compliance
