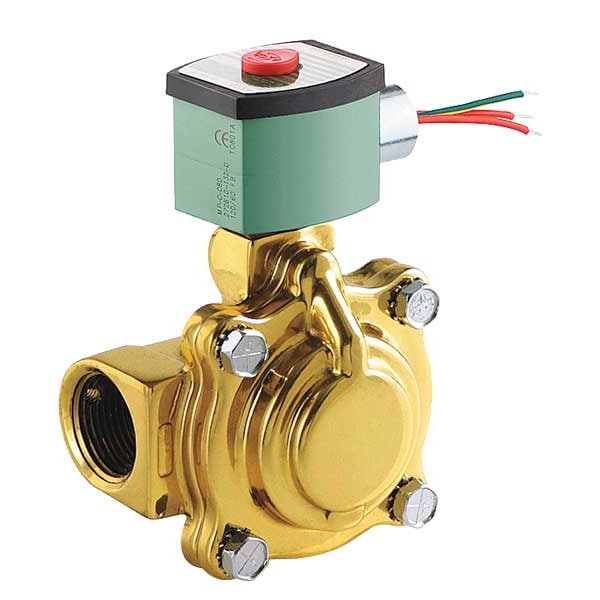

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 24V AC, High Flow, Brass
- Mfr # 8210G022
- Zoro # G3105873
product price:
$
604.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gases, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1-1/2 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8210G022
- Zoro #
- G3105873
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1-1/2 in
- Overall Height
- 5-5/8 in
- Overall Length
- 4 in
- Overall Width
- 3-9/16 in
- Center Line Pipe Center Size
- 4-3/16 in
- Orifice Diameter
- 1-1/4 in
- Wire Rope Length
- 4 in
- Length
- 4 in
Description
The ASCO 8210G022 Solenoid Valve is a 2-Way, 2-Position pilot-operated valve with media compatibility: Air, Inert Gas, Light Oil, Water. It features a normally closed configuration. The valve includes the coil and seals required for operation. Mounting Orientation: Vertical; Environmental Rating: Indoor, Outdoor.
Key Features:
- Valve Design: 2-Way/2-Position, Pilot Operated
- Valve Starting Configuration: Normally Closed
- Media compatibility: Air, Inert Gas, Light Oil, Water
- Operating Pressure Differential: Minimum 5 psi; Maximum 150 psi Air/Inert Gas and Water, 100 psi Light Oil
- Fluid Temperature Maximum: 180°F
- Ambient Operating Temperature Range: 14°F to 140°F
- Electrical: 24V AC voltage, 6.1 W wattage, coil insulation class F, 50/60 Hz frequency
- Coil enclosure: Watertight; Junction box: Not included
- Valve Type: High Flow with an orifice diameter of 1-1/4 in and a flow coefficient (Cv) of 22.5
- Connections: Inlet and Outlet NPTF threaded ports, nominal pipe size 1-1/2 in, thread type NPT
- Dimensions: 5-5/8 in height, 4 in length, 3-9/16 in width, center line pipe spacing 4-3/16 in
- Seal Material: NBR (Buna-N)
- Mounting Orientation: Vertical
- Environmental Rating: Indoor, Outdoor; NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X; IP Rating: 66
- Response Time: 1 second
- Certifications: UL Listed
