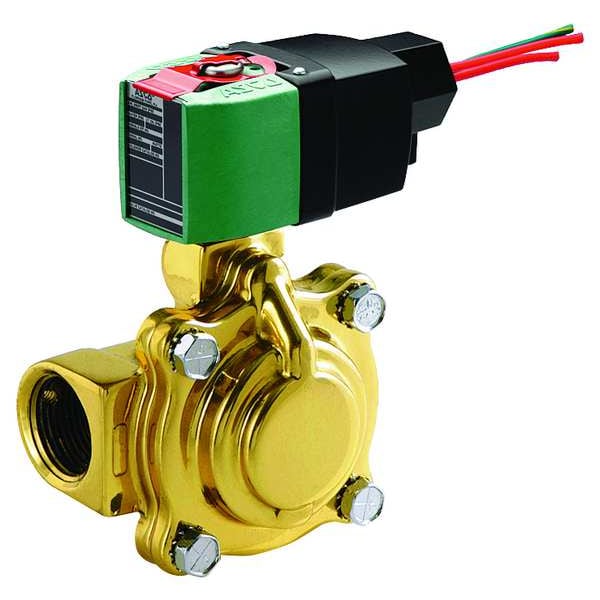

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 100V to 240V AC/DC, Brass
- Mfr # 8210P008
- Zoro # G2024836
Key Features
Specifications
Product Information
- MFR #
- 8210P008
- Zoro #
- G2024836
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1-1/4 in
- Overall Height
- 5-5/8 in
- Center Line Pipe Center Size
- 2 in
- Overall Width
- 3-3/4 in
- Overall Length
- 4 in
- Orifice Diameter
- 1-1/8 in
- Wire Rope Length
- 4 in
- Length
- 4 in
Description
The ASCO 8210P008 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Controls flow for air, inert gas, light oil, and water within differential pressure ratings: 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water). The valve body is constructed from brass and features NPT inlet and outlet connections with a nominal pipe size of 1-1/4 inches and a center line pipe center size of 2 inches. Coil and seals included. Mounting orientation: vertical. The coil has an H insulation class and operates at 100V to 240V AC/DC with a frequency of 60 Hz. Response time: 1 second. Operating temperatures: ambient 14-140°F; fluid temperatures up to 180°F.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Operation Type: Pilot Operated
- Body Material: Brass
- Connection Types: Inlet and outlet NPT threads, nominal pipe size 1-1/4 in
- Flow Capacity: Cv of 15 with 1-1/8 in orifice diameter
- Pressure Ratings: Maximum differential 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water); minimum differential 5 psi for all media
- Electrical: Coil wattage: 1.5 W; coil included; 100V to 240V AC/DC, 60 Hz frequency, and 1/2 in conduit hub connections
- Enclosure ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X
- Mounting orientation: Vertical
- Seal Material: NBR
- Dimensions: Overall length 4 in, height 5-5/8 in, width 3-3/4 in
