  11. Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 24V DC, High Flow, Brass

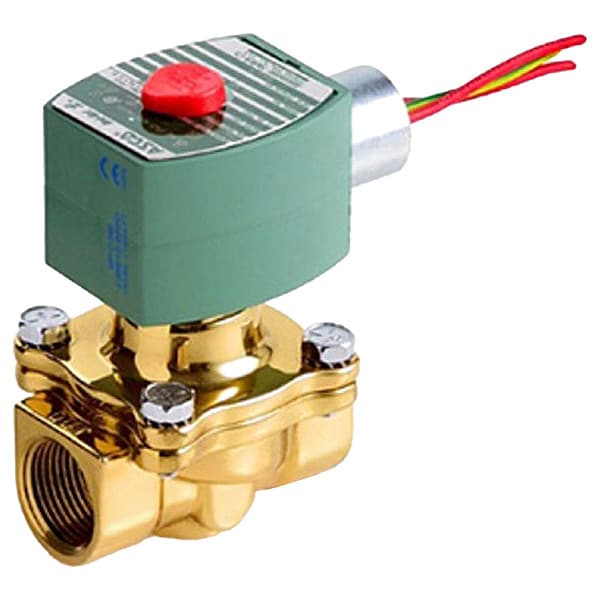

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 24V DC, High Flow, Brass 8210G008 - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 24V DC, High Flow, Brass

  • Mfr # 8210G008

  • Zoro # G2415926

product price: $415.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1-1/4 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8210G008
Zoro #
G2415926
UPC #
094703282887
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1-1/4 in
Overall Length
3-21/32 in
Center Line Pipe Center Size
4 in
Overall Width
3-9/16 in
Overall Height
5-5/8 in
Orifice Diameter
1-1/8 in

Details

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
24V DC
Valve Type
High Flow
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
125 psi Air/Inert Gas, 100 psi Light Oil, 150 psi Water
Operating Pressure Differential - Minimum
5 psi Air/Inert Gas, Light Oil, Water
Item
Solenoid Valve
Electrical Connections
1/2 in Conduit Hub
Valve Design
2-Way/2-Position
IP Rating
IP66
Body Material
Brass
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Coil Enclosure
Watertight
Coil Insulation Class
F
Standards
UL Listed
Environmental Rating
Indoor, Outdoor
Mounting Orientation
Vertical
Response Time
1 sec
Coefficient of Volume (Cv)
15
Operating Pressure Differential Light Oil - Maximum
100 psi
Operating Pressure Differential Hot Water - Maximum
Not Rated
Operating Pressure Differential Water - Minimum
5 psi
Frequency
50 Hz, 60 Hz
Includes Coil
Yes
Valve Positions
2-Position
Thread Type
NPT
Ambient Temperature - Maximum
140 Degrees F
Ambient Temperature - Minimum
14 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Wattage
6.1 W
Operating Pressure Differential Light Oil - Minimum
5 psi
Operating Pressure Differential Air/Inert Gas - Maximum
125 psi
Fluid Temperature - Maximum
180 Degrees F
Includes Seal
Yes
Operating Pressure Differential Air/Inert Gas - Minimum
5 psi
Operating Pressure Differential Water - Maximum
150 psi
Operating Pressure Differential Steam - Maximum
Not Rated

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Flow, Nominal Pipe Size 1 1/4 in, Orifice Diameter 1 1/8 in, Body Material Brass, Coefficient of Volume (Cv) 15, Operating Pressure Differential Air/Inert Gas - Maximum 125 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 24V DC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Watertight
