  6. Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Diaphragm, Brass

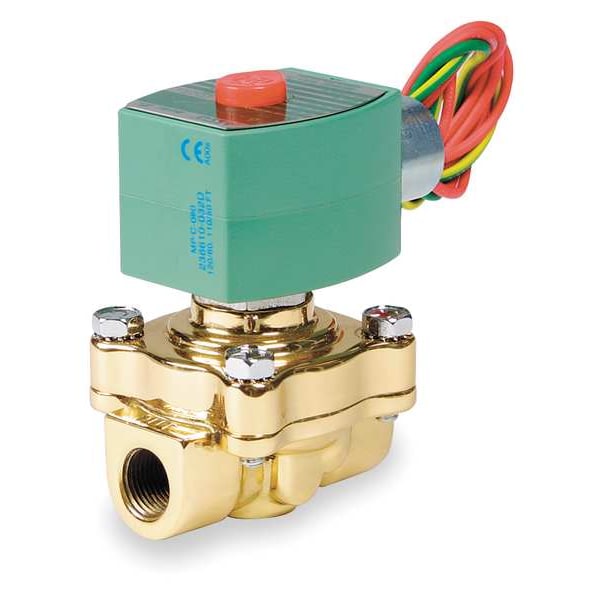

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Diaphragm, Brass 8210G094HW - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Diaphragm, Brass

  • Mfr # 8210G094HW

  • Zoro # G0610154

product price:  $272.99
/ea
Free Shipping & Returns

Key Features

For Media
Hot Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/2 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8210G094HW
Zoro #
G0610154
UPC #
094700511324
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1/2 in
Overall Height
3-27/32 in
Center Line Pipe Center Size
3-9/32 in
Overall Width
2-1/4 in
Overall Length
2-3/4 in
Orifice Diameter
5/8 in

Details

For Media
Hot Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
Diaphragm
Operation Type
Pilot Operated
Seal Material
EPDM
Operating Pressure Differential - Maximum
350 psi Air/Inert Gas, 210 psi Light Oil, 100 psi Hot Water
Operating Pressure Differential - Minimum
0 psi Hot Water
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Electrical Connections
1/2 in Conduit Hub
Coil Insulation Class
F
Max. Fluid Temp. Hot Water
210 Degrees F
Body Material
Brass
Coil Enclosure
Watertight
Max. Fluid Temp. Steam
Not Rated
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Standards
UL Listed
Ambient Temperature - Maximum
140 Degrees F
Valve Positions
2-Position
Operating Pressure Differential Water - Maximum
Not Rated
Wattage
10.1 W
Operating Pressure Differential Air/Inert Gas - Maximum
350 psi
Includes Seal
Yes
Operating Pressure Differential Hot Water - Maximum
100 psi
Mounting Orientation
Vertical
Thread Type
NPT
Ambient Temperature - Minimum
14 Degrees F
Includes Coil
Yes
Operating Pressure Differential Steam - Maximum
Not Rated
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Fluid Temperature - Maximum
210 Degrees F
Operating Pressure Differential Hot Water - Minimum
0 psi
Operating Pressure Differential Light Oil - Maximum
210 psi
Response Time
1 sec
Frequency
50 Hz, 60 Hz
Coefficient of Volume (Cv)
4
Environmental Rating
Indoor, Outdoor

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Diaphragm, Nominal Pipe Size 1/2 in, Orifice Diameter 5/8 in, Body Material Brass, Coefficient of Volume (Cv) 4, Operating Pressure Differential Air/Inert Gas - Maximum 350 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material EPDM, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Watertight
