Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Temperature

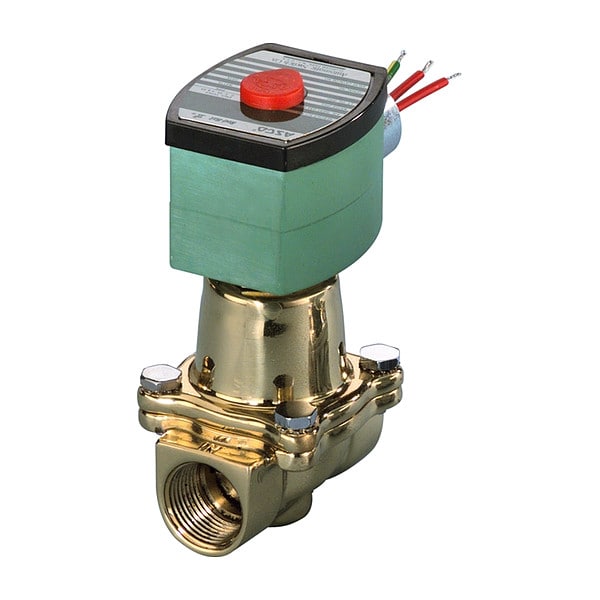

The ASCO 8222G002 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling the flow of steam. It features a brass body with PTFE seals and is rated for high-temperature steam service up to 353°F. The valve operates within an ambient temperature range of 14°F to 140°F and has a nominal pipe size of 1/2 inch with NPTF inlet and outlet connections. It comes with an integrated coil compatible with 120V AC power at 50/60 Hz and a wattage rating of 17.1 W. The valve is normally closed by default.

Key Features:

• Valve Type: High Temperature, pilot-operated for controlled flow actuation
• Valve Design: 2-Way/2-Position with normally closed starting configuration
• Body Material and Seal: Brass body with PTFE seal material
• Connections: 1/2 in nominal pipe size with NPTF inlet and outlet thread types
• Flow and Pressure Ratings: Orifice diameter of 5/8 in, Cv of 3, max operating pressure differential of 125 psi for steam and water
• Temperature Ratings: Max fluid temperature 353°F for steam; ambient temperature range 14°F to 140°F
• Coil Characteristics: Includes coil, 120V AC voltage, 17.1 W wattage, Class H insulation, and watertight enclosure without junction box
• Electrical Connections: 1/2 in conduit with 18 in leads
• Environmental Ratings: NEMA 1, 2, 3, 3S, 4, 4X; enclosure watertight; hazardous-location suitability not specified
• Dimensions: Overall length 2-3/4 in, width 2-9/32 in, height 4-11/16 in
• Certifications: UL Listed with NEMA ratings 1, 2, 3, 3S, 4, and 4X
• Includes: Coil and sealing components
