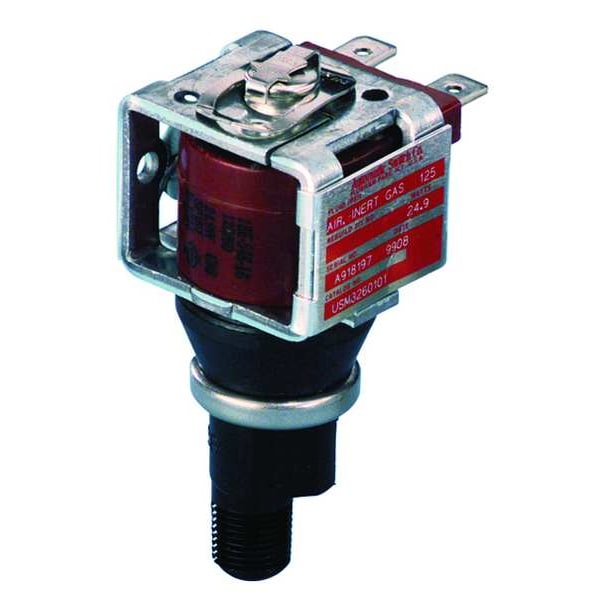

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Dust Collector, NBR

  • Mfr # USM8260100

  • Zoro # G0873223

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
Barb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
USM8260100
Zoro #
G0873223
UPC #
-
Country of Origin
United States
For Media
Air, Inert Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
Barb
Outlet Connection Type
Barb
Voltage
120V AC
Valve Type
Dust Collector
Seal Material
NBR
Operating Pressure Differential - Maximum
125 psi Air/Inert Gas, 150 psi
Operating Pressure Differential - Minimum
0 psi Air/Inert Gas
Item
Solenoid Valve
Coil Insulation Class
F
Electrical Connections
Spade Terminal
IP Rating
IP66
Valve Design
2-Way/2-Position
Body Material
Plastic
Application
Pilots Large Dust Collector Pulse Valves
Coil Enclosure
Without Junction Box, Watertight
Frequency
60 Hz
Operating Pressure Differential Steam - Maximum
Not Rated
Ambient Temperature - Minimum
32 Degrees F
Operating Pressure Differential Hot Water - Maximum
Not Rated
Fluid Temperature - Maximum
125 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Operating Pressure Differential Water - Maximum
Not Rated
Ambient Temperature - Maximum
125 Degrees F
Includes Coil
Yes
Coefficient of Volume (Cv)
0.3
Wattage
24.9 W
Operating Pressure Differential Air/Inert Gas - Maximum
125 psi
Valve Positions
2-Position
Includes Seal
Yes
Environmental Rating
Indoor, Outdoor
Mounting Orientation
Horizontal or Vertical
Operating Pressure Differential Air/Inert Gas - Minimum
0 psi
Operating Pressure Differential Light Oil - Maximum
Not Rated

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Dust Collector, Nominal Pipe Size 1/4 in, Orifice Diameter 1/8 in, Body Material Plastic, Coefficient of Volume (Cv) 0.3, Operating Pressure Differential Air/Inert Gas - Maximum 125 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
