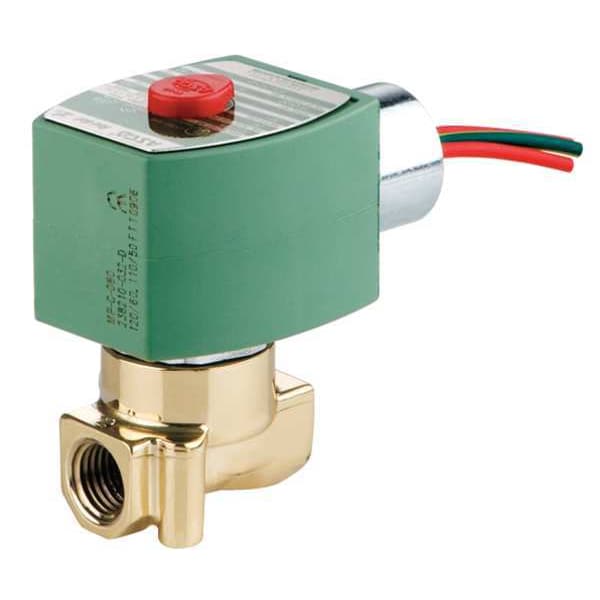

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass
- Mfr # 8262H013V
- Zoro # G3678001
product price:
$
94.99
/ea
Key Features
For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8262H013V
- Zoro #
- G3678001
- UPC #
- 094714832422
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Height
- 2-31/32 in
- Center Line Pipe Center Size
- 2-1/4 in
- Overall Width
- 1-11/16 in
- Overall Length
- 1-9/16 in
- Orifice Diameter
- 7/32 in
- Wire Rope Length
- 1 9/16 in
- Length
- 1 9/16 in
Description
The ASCO 8262H013V Solenoid Valve is a direct-acting, normally closed 2-way/2-position valve designed for controlling the flow of air, inert gas, light oil, and water. It features a brass valve body and includes both the coil and necessary seals. Suitable for installation in either horizontal or vertical orientations. Ambient operating temperature range: -13°F to 131°F; maximum fluid temperature: 180°F. Approved for industrial use; CE, CSA, FM, and UL-listed; compatible with equipment in industrial facilities per listed standards; NEMA ratings: 1, 2, 3, 3S, 4, 4X.
Key Features:
- Valve Type: Direct Acting, Normally Closed configuration
- Valve Design: 2-Way/2-Position with 2-Position operation
- Material: Brass valve body with FKM sealing material
- Connections: Inlet and outlet with NPTF thread type, nominal pipe size 1/4 in
- Electrical: 120V AC voltage, 60 Hz frequency, 6.1 W coil wattage, with 1/2 in conduit and 18 in leads
- Enclosure: Coil enclosure: watertight; no junction box included
- NEMA rating: 1, 2, 3, 3S, 4, 4X enclosures
- Pressure differential: Air/inert gas 0–55 psi; light oil 0–40 psi; water 0–54 psi
- Flow Capacity: Coefficient of volume (Cv) of 0.73, orifice diameter 7/32 in
- Dimensions: Overall length 1-9/16 in, height 2-31/32 in, width 1-11/16 in
- Response time: approximately 1 second (typical under test conditions; actual time may vary)
- Mounting Orientation: Can be installed horizontally or vertically
- Standards: Certified to CE, CSA, FM, and UL Listed
- NEMA Rating: Rated for 1, 2, 3, 3S, 4, and 4X enclosures
